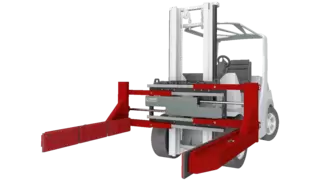

Block Clamp T412V-3

with independent sideshift - with mechanical equilibration plates with Vulcollan coating - 2 hydraulic functions

Datasheet as pdf Find a contact person

Technical data

Specification:

KAUP Block Clamps T412V-3 are fitted with clamping arms with especially large mechanical equilibration plates with Vulcollan coating. This attachment is particularly suited for handling large blocks or packets of blocks with plane surfaces and high dimensional stability.

Qualities:

  • Mechanical equalisation
  • Low lost load centre - excellent residual capacity
  • Very good visibility conditions
  • Independent sideshift serially
  • Load Backrest optionally



  • Available with cylinder- and sideshift protection upon request
  • Also available without sideshift, model T402V-3
  • Variations in arm dimensions upon request.
  • Load Backrest see model T179.
Your KAUP consultant
André Christ

Product details

Attachment has separate sideshift as standard. The maximum allowable sideshift stroke (e.g. ± 100 mm) is always available independent of fork or arm position (with clamps or fork positioners).
Attachment is operated hydraulically, i.e. supplied with oil from the forklift truck’s hydraulic system. Truck requires two additional hydraulic functions.
Attachment can be fitted with load backrest model T479. The load backrest model T479.1 is suitable for fork positioners T160B and T466B up to 4.8T.
Attachment is available with cylinder and sideshifter protection.
Attachment is designed with toe-in on the tips which should be taken into account when choosing the opening range.
