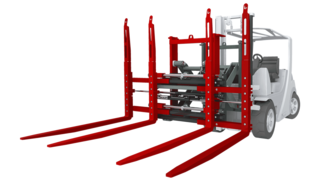

Double Pallet Handler on a Pantograph T429/T149Z

with independent sideshift –

Datasheet as pdf Find a contact person Call technical data

Specification:

The combination of the well known KAUP Multi Pallet Handler with a Pantograph T149Z creates an attachment with a multitude of application possibilities. It makes speedy loading of lorries or wagons from the side possible as well as loading and unloading double deep storage racks. As with all other KAUP Multi Pallet Handlers, the Double Pallet Handler with Pantograph type T429C/T149Z has a durable and reliable construction with a minimum of required maintenance with maximum operation.

Product pictures and videos

Qualities:

  • Good visibility conditions
  • Synchronized for quicker working speeds
  • Independent sideshift serially
  • Screw-on forks serially
  • Fork length optional 1200 mm, 1150 mm or 1000 mm.
  • Locating claw on fork tip available upon request.
  • Wider fork shanks available upon request.
Blue-white icon representing the multiple pallet handling capability of the T429/T149Z
Multi Pallet Handling: 1 or 2 palletts next to each other.
Blue icon with the outline of a drop with two arrows and the inscription "2+" in the middle
Attachment requires more than two additional hydraulic functions in order to operate. In this case one of the hydraulic circuits is split by use of a solenoid valve which is part of the attachment.
Square icon with a white arrow pointing in two directions and the letter "S"
Attachment has separate sideshift as standard. The maximum allowable sideshift stroke (e.g. ± 100 mm) is always available independent of fork or arm position (with clamps or fork positioners).
Icon with bar chart in the form of three blue arrows with info circle in the upper right corner
Please note the additional information below the data table.
