Fork Positioner, integrated T160 BI

with valveblock sideshift dependent on the opening range - without forks - for forks acc. to ISO 2330 - 2 hydraulic functions

Datasheet as pdf Find a contact person Call technical data

Specification:

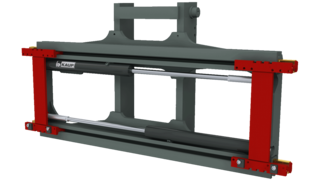

The KAUP integrated Fork Positioner T160BI is an economical integrated Fork Positioner with excellent view to the fork tips and load. Compared to hook-on attachments in the T160 range this Fork Positioner has an even better, higher residual capacity.

Product pictures and videos

Qualities:

  • Economical integrated Fork Positioner for moderately heavy operation
  • Excellent residual capacity
  • High stability with optimal tare weight
  • Very good visibility conditions
  • Valve block sideshift serially
  • Original forklift trucks useable



  • 1) 4,8T with capacity (kg/mm) 2.700/1.200 available upon request.
  • CofG and weight measurements do not take the cheek plates into account.
  • Fork carriage drawings, roller studs and chain anchors to be supplied by customer if necessary.
  • Not suitable for clamping between the forks.
  • Available without sideshift.
  • Load backrest see model T479 and T479.1
  • Forks see model T180.
  • Higher capacities and other construction widths available upon request.
Blue-white icon with the letter "V" in the centre and two arrows pointing left and right
Attachment has valveblock sideshift serially (integrated sideshift). Its design means that sideshift stroke is not available when the forks or arms are completely opened and/or completely closed.
Blue icon with the white outline of a drop with two arrows and the number 2 in the middle
Attachment is operated hydraulically, i.e. supplied with oil from the forklift truck’s hydraulic system. Truck requires two additional hydraulic functions.
Icon with inscription T180 and blue image of a forklift fork on white background
Attachment supplied serially without forks. All forks in accordance with ISO 2330 can be used. Matching forks model T180 are available.
Icon with blue load backrest on white background and the inscription T479/T479.1 below it
Attachment can be fitted with load backrest model T479. The load backrest model T479.1 is suitable for fork positioners T160B and T466B up to 4.8T.
Square icon with a blue hexagon on a white background and the inscription "Ex" in the middle
Attachment is available for operation in explosion hazardous areas.
Icon with forks from above with several arrows pointing inwards and a stop sign above it
Attachment is specially designed for the function fork positioning and is not suitable for clamping between the forks.
