Triple Sideshifter T253B

2 hydraulik functions 1)

Datasheet as pdf Find a contact person Call technical data

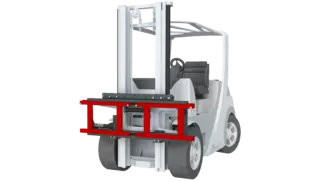

The Triple Sideshifter T253B is a part of the KAUP Multiple Sideshifter product range. This attachment extends the operation of every forklift truck as the Triple Sideshifter can simultaneously pick up two transport units next to each other.

Product pictures and videos


  • Very good residual capacity
  • Good visibility conditions
  • SMOOTHROLL- bottom hooks with compact rollers serially
  • Optional: single or pairwise control of fork pairs


  • L = Pallet handling lengthwise / Q = Pallet handling crosswise. / L / Q = Pallet handling lengthwise and crosswise.
  • 1) Alternatively available with solenoid valve for individual adjustment of the fork carriages.
  • Forks see model T180.
  • Please observe necessary fork shank under-clearance.
  • Capacities of 3T upwards with SOFTSTOP end-of-stroke slow-down.
  • Higher capacities and other construction widths available upon request.
  • Load Backrest see model T179.
Blue icon with the white outline of a drop with two arrows and the number 2 in the middle
Attachment is operated hydraulically, i.e. supplied with oil from the forklift truck’s hydraulic system. Truck requires two additional hydraulic functions.
Icon with inscription T180 and blue image of a forklift fork on white background
Attachment supplied serially without forks. All forks in accordance with ISO 2330 can be used. Matching forks model T180 are available.
Icon with blue load backrest on white background and the inscription T179 below it
Attachment can be fitted with load backrest model T179.
Icon with bar chart in the form of three blue arrows with info circle in the upper right corner
Please note the additional information below the data table.
