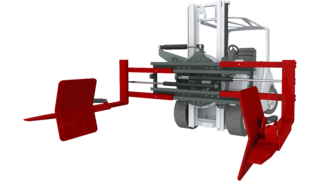

Tyre Handler T421SV

with independent sideshift - 2 hydraulic functions + 2 solenoid valves

Datasheet as pdf Find a contact person Call technical data

Specification:

A special attachment: the KAUP Tyre Handler T421SV. It allows the trouble-free transport of colossal, heavy tyres and their assembly in mining, mines and building industry. Optionally the attachment can be also adapted to the application at very low temperatures.

Product pictures and videos

Qualities:

  • Robust construction
  • Solid and slender arm construction
  • Independent sideshift and level balance serially
  • Serially contact pads around 90° rotating



  • 10T and above - Terminal West / Pin-Type mounting available upon request.
  • Pads ± 90° tiltable available upon request.
  • 1) At oil flow rates of over 80 l/min flow restriction valves are to be applied.
Blue icon with the outline of a drop with two arrows and the inscription "2+" in the middle
Attachment requires more than two additional hydraulic functions in order to operate. In this case one of the hydraulic circuits is split by use of a solenoid valve which is part of the attachment.
Square icon with a white arrow pointing in two directions and the letter "S"
Attachment has separate sideshift as standard. The maximum allowable sideshift stroke (e.g. ± 100 mm) is always available independent of fork or arm position (with clamps or fork positioners).
Square, blue icon with a circular arrow and the white inscription 20 degrees in the middle
Attachment rotates hydraulically as level compensation by ± 20° in both directions.
Icon with the inscription 90 degrees and the side view of a clamp with an arrow pointing downwards
Attachment is hydraulically tiltable by 90°
