Forklift spreader for container handling
KAUP Container spreaders for forklift trucks guarantee efficient handling for all container types. Whether it’s a top spreader, spreader for lateral or frontal pick-up, rigid design or telescopic - KAUP spreaders can be optimally configured for almost any application.
KAUP forklift trucks spreaders ensure maximum handling performance, providing an excellent view of the container corners. This enables the operator to position the spreader quickly and accurately.
Features & Options innovative & long-lasting
Long service life and reliable operation
Highly flexible design allows handling of even damaged containers
To be slipped onto forks and inverted forks | Hook-on | Integrated | Terminal West | Pin Type
Hydraulic or manual locking via twist lock, pin or hook
Large and individual customised telescoping ranges
Camera systems
LED work lights
Reach & slew function for precise positioning
Hydraulic rotation 270° oder 360° endless (Reachstacker only)
Tropical or seawater-resistant version available
Separate (independent) sideshift
More options possible
KAUP forklift spreader at a glance

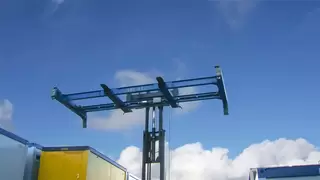

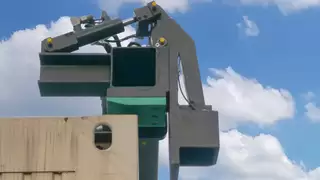

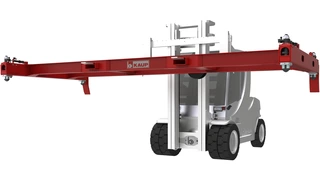

Fixed Top Lift Spreader T192E
- For top handling a specified container size (10' to 40' ISO / Sealand / special container dimensions)
- To be slipped onto forks and inverted forks | Hook-on | Integrated | Terminal West | Pin Type
- Capacity (SWL) from 1.000 kg to 45.000 kg

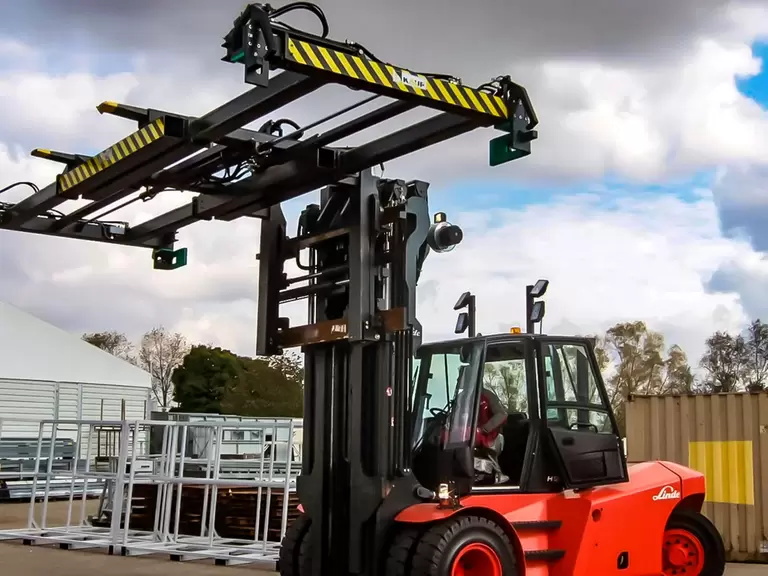

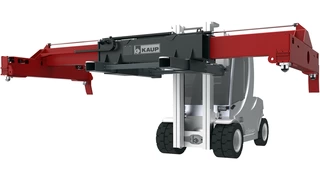

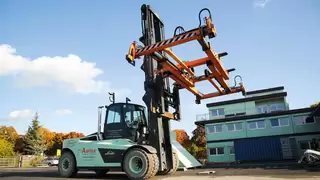

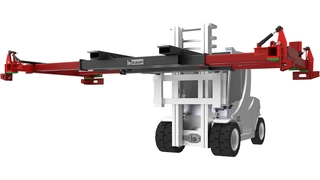

Telescoping Top Lift Spreader T192E
- For flexible top handling of 10' to 40' ISO / Sealand / special container dimensions
- To be slipped onto forks and reversible forks | Hook-on | Integrated | Terminal West | Pin Type
- Capacity (SWL) from 1.000 kg to 45.000 kg

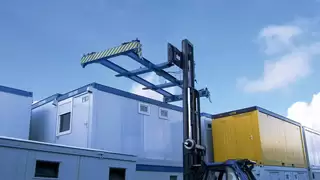

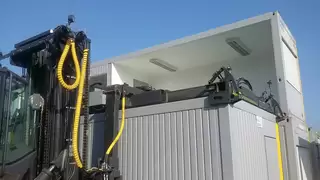

Double Telescoping Top Lift Spreader T192E
- For top handling of containers with customized dimensions for example; accommodation, office, construction or module containers.
- To be slipped onto forks and inverted forks | Hook-on | Integrated | Terminal West | Pin Type
- Capacity (SWL) from 1.000 kg to 12.000 kg

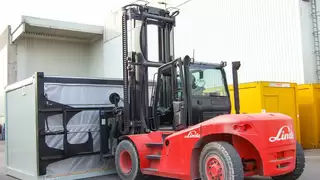

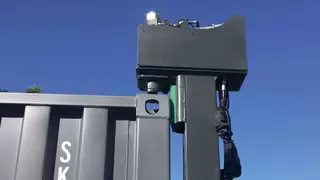

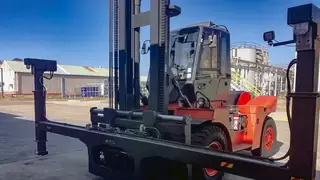

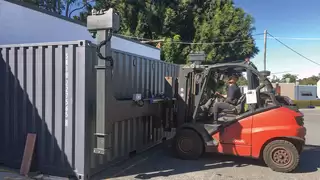

Fixed Side Lift Spreader T193
- For lateral handling of a specified container size (10' to 40' ISO / Sealand / special container dimensions)
- Hook-on | Integrated | Terminal West | Pin Type
- Capacity (SWL) from 1.000 kg to 12.000 kg
- Optionally available with independant sideshift
- Optionally available with hydraulically adjustable bottom support

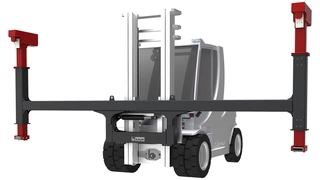

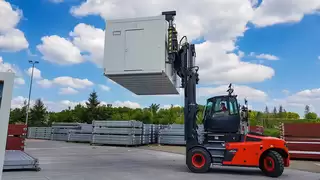

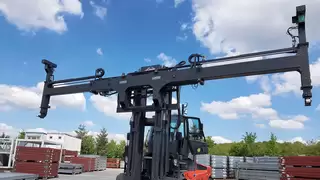

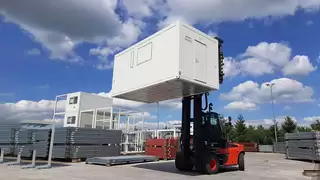

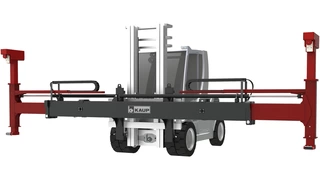

Telescoping Side Lift Spreader T193
- For flexible lateral handling of 10' to 40' ISO / Sealand / special container dimensions
- Hook-on | Integrated | Terminal West | Pin Type
- Capacity (SWL) from1.000 kg to 12.000 kg
- Optionally available with independent sideshift
- Optionally available with hydraulically adjustable bottom support

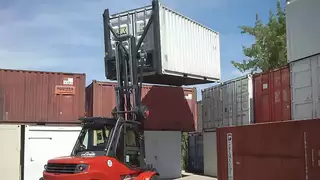

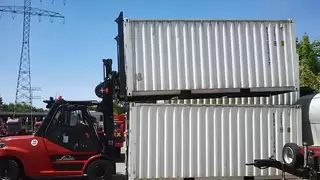

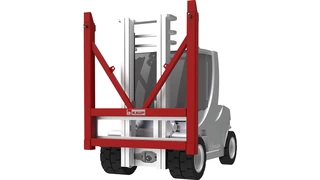

Fixed End Lift Spreader T193L
- For lateral handling of empty containers
- Hook-on | Integrated | Terminal West | Pin Type
- Capacity (SWL) from 1.000 kg to 8.000 kg

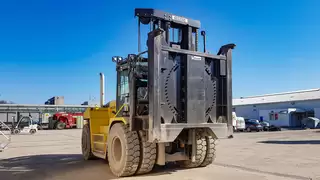

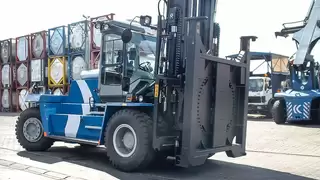

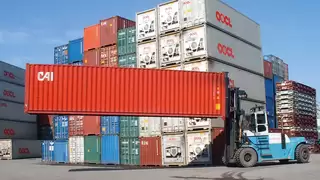

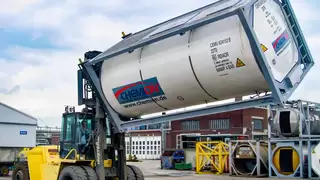

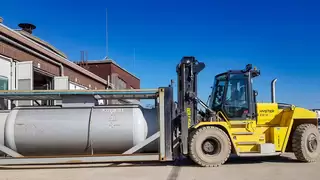

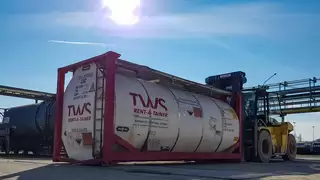

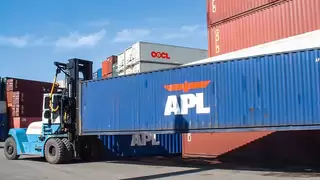

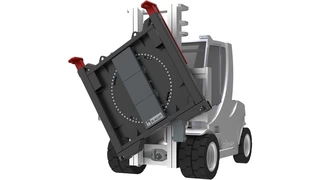

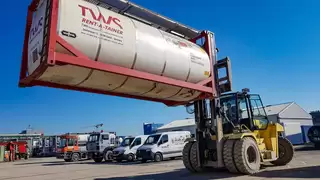

Rotating End Lift Spreader T193LD (360° endless)
- For lateral handling and turning empty containers
- Hook-on | Integrated | Terminal West | Pin Type
- Capacity (SWL) from 1.000 kg to 8.000 kg
