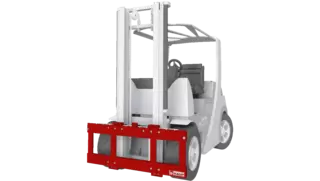

Fork Carriage T013

to enlarge the width of the original fork carriage or as false carriage for fork drop-off

Technical Data

Refer to the data sheet for the exact dimensions of the product variants:

download pdf-datasheet Calculate residual capacity
Model
Cap.

kg
LCD

mm

B
mm


ISO

V
mm
CofG
Z
mm
CofGv
Y
mm
Weight

kg
Price

options calculations
(load) capacity
2T013 2.500 600 920 2 65 38 206 68 On request calculate
2T013 2.500 600 980 2 65 39 206 70 On request calculate
2T013 2.500 600 1.020 2 65 39 206 72 On request calculate
2T013 2.500 600 1.040 2 65 39 206 73 On request calculate
2T013 2.500 600 1.150 2 65 41 205 93 On request calculate
2T013 2.500 600 1.600 2 75 49 203 143 On request calculate
3T013 3.000 500 1.020 3 75 46 256 101 On request calculate
3T013 3.000 500 1.070 3 75 46 256 105 On request calculate
3T013 3.000 500 1.100 3 75 46 256 107 On request calculate
3T013 3.000 500 1.150 3 75 47 256 110 On request calculate
3T013 3.000 500 1.300 3 75 48 255 127 On request calculate
3T013 3.000 500 1.600 3 85 55 254 203 On request calculate
4,8T013 5.000 600 1.150 3 75 42 278 128 On request calculate
4,8T013 5.000 600 1.200 3 75 42 277 132 On request calculate
4,8T013 5.000 600 1.300 3 75 43 275 145 On request calculate
4,8T013 5.000 600 1.310 3 75 43 275 145 On request calculate
4,8T013 5.000 600 1.350 3 75 44 274 148 On request calculate
4,8T013 5.000 600 1.410 3 75 44 274 152 On request calculate
4,8T013 5.000 600 1.600 3 85 51 267 220 On request calculate
4,8T013 5.000 600 1.800 3 85 52 266 237 On request calculate
4,8T013 5.000 600 2.000 3 85 53 265 255 On request calculate
8T013 8.000 600 1.400 4 90 51 352 246 On request calculate
8T013 8.000 600 1.800 4 100 60 345 348 On request calculate
8T013 8.000 600 2.180 4 100 61 342 397 On request calculate
8T013 8.000 600 2.260 4 110 67 338 466 On request calculate
Load Backrest see model T179.
Other construction widths available upon request.
Avaliable in combination with quick release bottom hooks for quick change fork applications to other attachments.
Fork Carriage with artificial lost load center distance available upon request.
  • Attachment is serially designed without sideshift. It can be fitted with separate or valveblock sidesift upon request.

    Attachment is serially designed without sideshift. It can be fitted with separate or valveblock sidesift upon request.

  • Attachment can be fitted with load backrest model T179.

    Attachment can be fitted with load backrest model T179.

  • Please note the additional information below the data table.

    Please note the additional information below the data table.

  • Attachment supplied serially without forks. All forks in accordance with ISO 2330 can be used. Matching forks model T180 are available.

    Attachment supplied serially without forks. All forks in accordance with ISO 2330 can be used. Matching forks model T180 are available.


Specification:

The existing fork carriage of the forklift truck can be extended with a KAUP Fork Carriage type T013. It can also be used for quick change between attachments and/or forks.

Upon request KAUP Fork Carriages can be supplied to increase the lost load centre and as adapter fork carriage between the forklift truck and other attachments.


Qualities:

  • Solid construction for heavy duty operation
  • Best visibility
