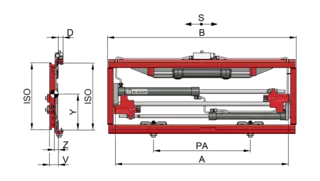

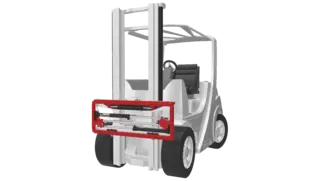

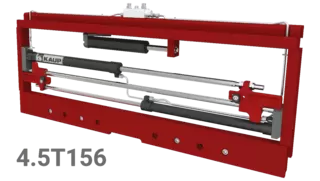

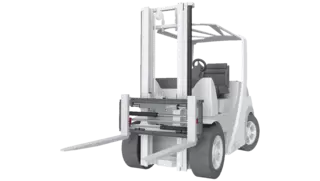

Fork positioner T156

with independent sideshift - without forks - for forks acc. to ISO 2330 - 2 hydraulic functions

Datasheet as pdf Find a contact person

Technical data

Specification:

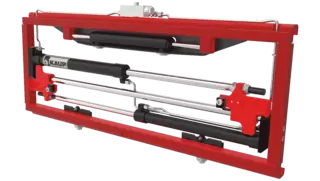

The Fork Positioner T156 is the starter series of KAUP Fork Positioners. This attachment with excellent price-performance ratio is designed with hydraulic parallel movement with two cylinders and is based on the P4-Sideshifter.

Qualities:

  • Excellent price-performance ratio
  • For light duty operation
  • Hydraulic parallel movement
  • Independent sideshift
  • Original forklift trucks useable
  • Optional: without sideshift



  • Not suitable for clamping between the forks.
  • Forks see model T180.
  • The original forks of the forklift truck, up to length of 1600 mm, can be used.
  • Load backrest see model T173
Your KAUP consultant
André Christ

Product details

Attachment has separate sideshift serially. The maximum allowable sideshift stroke (e.g. ± 100 mm) is always available independent of fork or arm position (with clamps or fork positioners).
Attachment is operated hydraulically, i.e. supplied with oil from the forklift truck’s hydraulic system. Truck requires two additional hydraulic functions.
Attachment supplied serially without forks. All forks in accordance with ISO 2330 can be used. Matching forks model T180 are available.
Attachment can be fitted with load backrest model T173.
Attachment is specially designed for the function fork positioning and is not suitable for clamping between the forks.

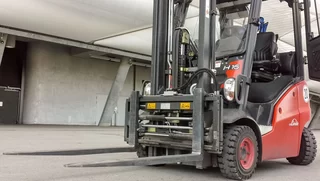

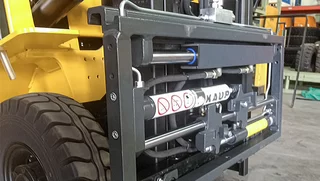

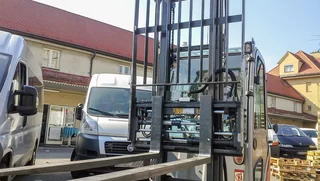

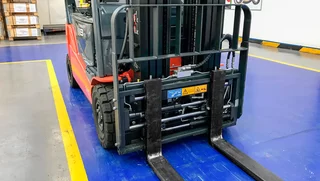

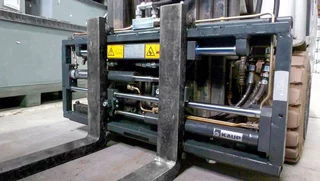

Product pictures and videos
