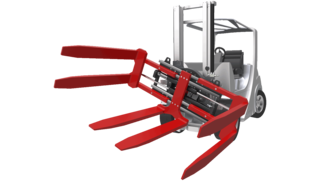

Pallet Turnover Clamp T451W/180

Rotation 360° continuous - with additional pair of forks to empty various boxes - 2 hydraulic functions

Datasheet as pdf Find a contact person Call technical data

Specification:

An additional fork pair distinguishes this attachment from the Pallet Turnover Clamp T451. It allows an easy and safe emptying of the most different transport containers or grid boxing with suitable insertion slots.

Product pictures and videos

Qualities:

Good visibility conditions
Stable construction
Rotation 360° endlessly
Two double forks with additional fork pair serially for safe handling
Optionally with sideshift available

Attention: Additional forks exclusively possible with underclearance according to ISO class »B« version
Note: Container must have suitable insertion slots.
Also available with sideshift, model T491W/180 on request

Attachment rotates hydraulically by 360° endless in both directions.

Attachment is operated hydraulically, i.e. supplied with oil from the forklift truck’s hydraulic system. Truck requires two additional hydraulic functions.

Attachment is serially designed without sideshift. It can be fitted with separate or valveblock sidesift upon request.

Attachment is available for operation in explosion hazardous areas.

Attachment is designed with toe-in on the tips which should be taken into account when choosing the opening range.

Attachment is available with cylinder and sideshifter protection.
