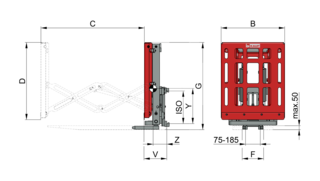

Pusher T141S, T142S ¹⁾

Pusher with pallet retainer T142S 2 hydraulic functions

Datasheet as pdf Find a contact person Call technical data

Specification:

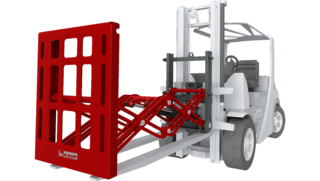

KAUP Pusher T141S¹⁾ and Pusher with pallet retainer T142S are part of the KAUP Push-Pull range of products. Contrary to palletless loading, using this attachment the load is either pushed completely with the wooden/plastic pallet (T141S) or separated from the wooden/plastic pallet (T142S).

Pushers are mounted directly on to the fork carriage between the existing forks and can be combined with other KAUP attachments.

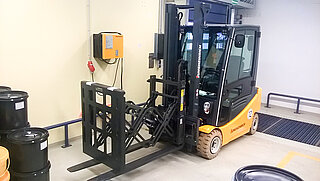

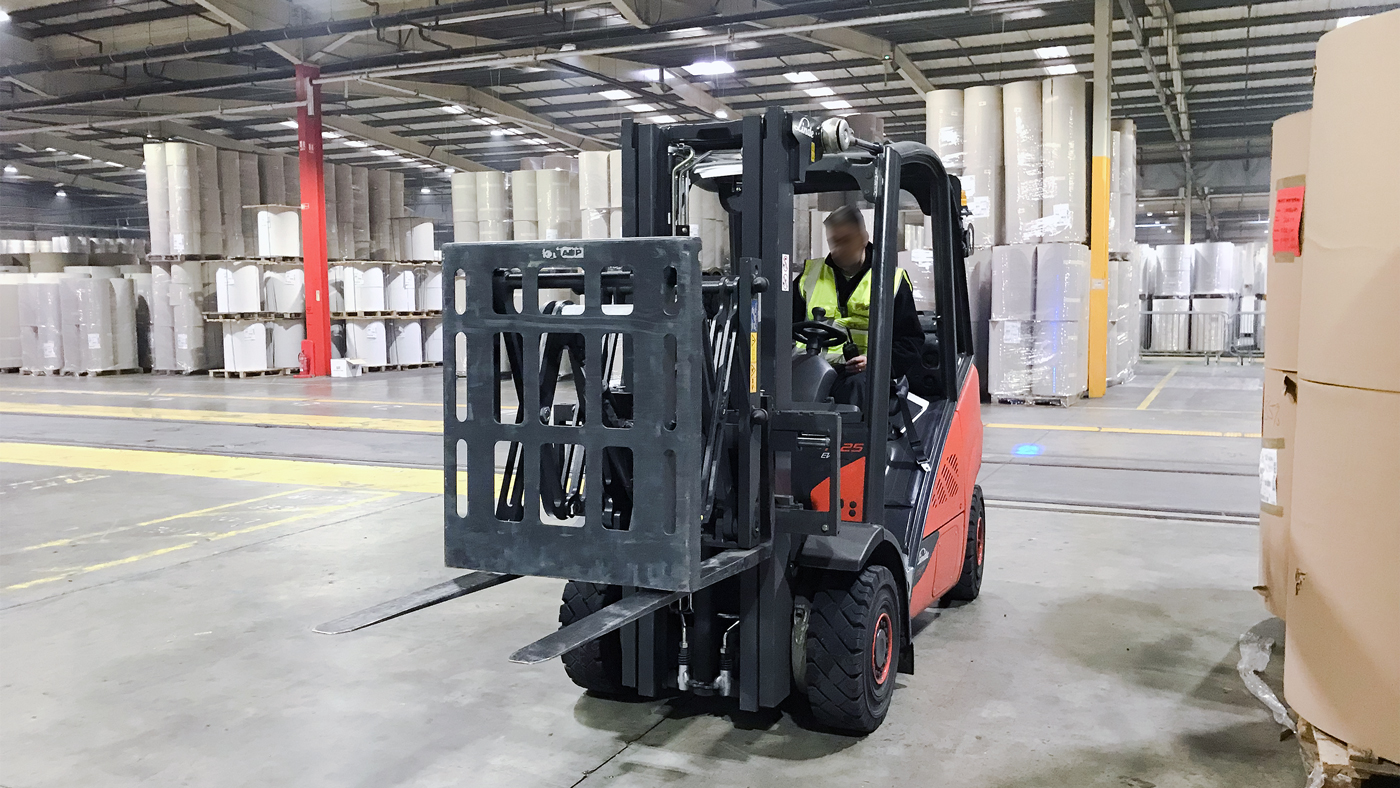

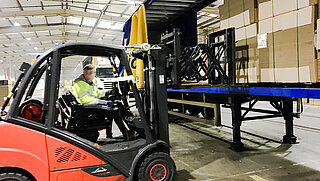

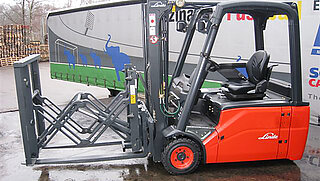

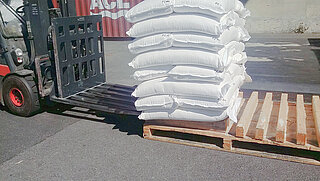

Product pictures and videos

Qualities:

Solid construction
Good visibility conditions through the attachment
Good residual capacity

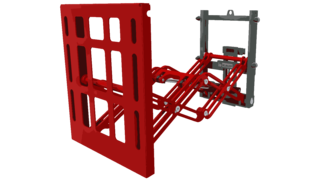

Self supporting scissor system
Different lengths of forks useable
Multi-fork pushers available upon request
Combination with other attachments - for example sideshifters - possible

Forks are not included.
1) Pusher T141S - 1 hydraulic function
1) Pusher with pallet retainer T142S - 2 hydraulic functions
Forks see model T180.
To choose the right fork length please consider dimension „V“ of the pusher.

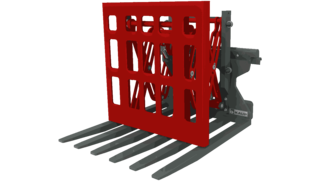

Multi-fork pusher T141S/180 available upon request.

Attachment is operated hydraulically, i.e. supplied with oil from the forklift truck’s hydraulic system. Truck requires one additional hydraulic function.

Attachment is operated hydraulically, i.e. supplied with oil from the forklift truck’s hydraulic system. Truck requires two additional hydraulic functions.

Attachment is serially designed without sideshift. It can be fitted with separate or valveblock sidesift upon request.

Attachment supplied serially without forks. All forks in accordance with ISO 2330 can be used. Matching forks model T180 are available.
