Four in one fell swoop Multiple attachments solve a handling job

NAWARO ENERGIE Betrieb GmbH (NAWARO) is one of the largest bio-energy producers in Lower Austria. The company produces 133,000,000 kWh of green electricity annually with three of its own biomass power plants (locations: Altweitra, Rastenfeld and Göpfritz an der Wild) and supplies more than 30,000 households. The raw material for these power plants: natural wood chips, around 90 % of which are obtained from regional suppliers. Another source of income for NAWARO: the production of high-quality biochar at its Perg location. When wood is gasified, biochar is created as a by-product. This can be used in landscaping and metallurgy.

Task

  • For the location of Perg, which started operation in 2023, NAWARO needed a practical handling solution to be able to transport various types of load, including pallets and Big Bags, quickly and efficiently.


Challenge

  • Convince new KAUP customers of our solution(competence)
  • Develop and design a solution with various components as well as presenting and producing it

Solution

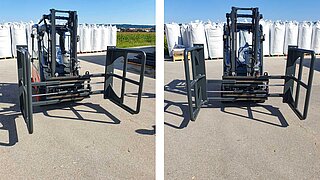

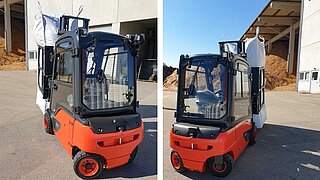

  • Four KAUP attachments form an individual complete solution – suitable for the Linde E20PL electrical forklift

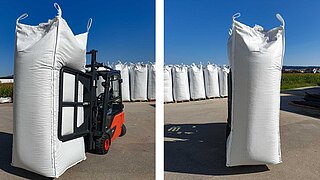

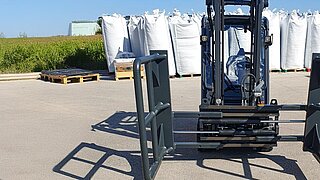

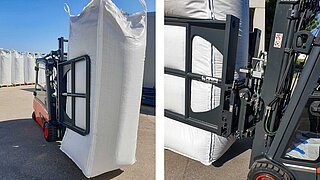

    1. Attachment: 2T403 bale clamp for transporting Big Bags with biochar

    • Unit without sideshift
    • Terminal West attachment for fitting in the quick-change system
    • Arms in tubular version - with Hardox on the underside of the arms
    • Multicoupler incl. parking station and dust protection cover
    • With pressure limiter - accelerator valve - quick mounting hooks

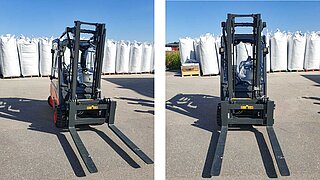

    2. Attachment: Fork tines 2.5T180

    • Fork length 1,200 mm
    • Fork cross cut 120 x 40 mm

    3. Attachment: Front fork carrier 2T013

    • Load capacity 2,500 kg at 600 mm load centre
    • with welded quick change hooks
      suitable for…

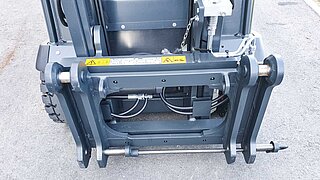

    4. Attachment: Quick change system 2.5T013SWMI

    • with mechanical locking
    • +/- 100 mm sideshift
    • Overall width approx. 850 mm
    • Load capacity 2,500 kg at 500 mm load centre

Customer:

NAWARO ENERGIE Betrieb GmbH is a leading company in the field of renewable energies in the Waldviertel region of Lower Austria. The company produces green electricity and biochar in its own plants, which is used in the agricultural and construction industries, for example



Head Office: Zwettl, Austria
Branch: Energy industry
Website: nawaro-energie.at
