Roll Clamp Force Gauge T006

The innovative accessorie from KAUP: It measures the actual clamping force and thus helps in setting the correct clamping force to prevent damage to the paper rolls.

Rolls of paper are highly sensitive transport goods. Rotating Roll Clamps transport these goods. However if the clamping force is too high serious damage can occur on the paper rolls and, in a worst case scenario, make them unsuitable for use in further product processing. But that mustn’t happen if the applied force of the roll clamp is correctly measured and set beforehand.

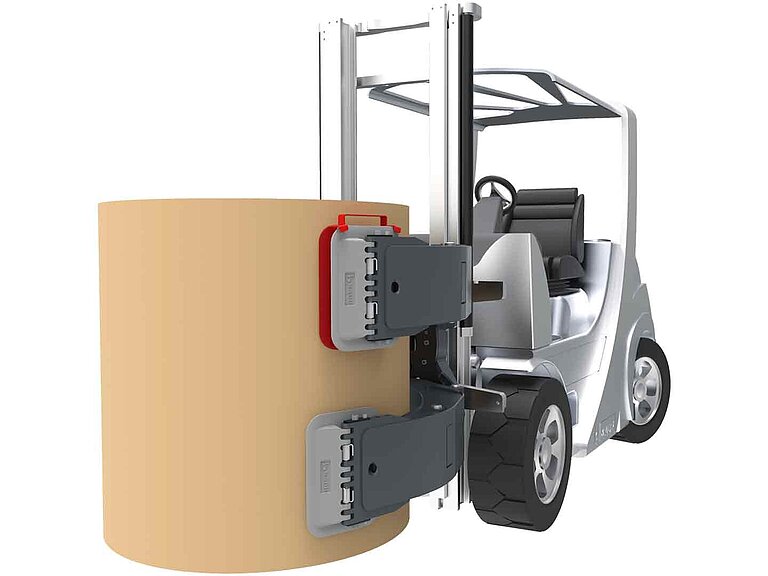

KAUP’s solution is the Roll Clamp Force Gauge T006. It measures the actual clamping force and thus helps in setting the correct clamping force to prevent damage to the paper rolls. A further advantage of the Roll Clamp Force Gauge T006: it creates transparency and verifiability. How? The T006 records every test procedure. The results can either be digitally transmitted or printed for documentation.



System

The compact, portable Roll Clamp Force Gauge T006 from KAUP is made up of very few components:

  • two pressure plates with clamp force sensors
  • casing of clamp force gauge with two each height adjustable suspensions and a tension belt for securing the measuring gauge
  • control unit with control, printer and connections for an external analysis system
  • Flightcase with trolley function for transporting the set
