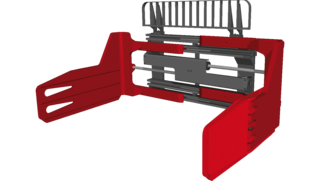

Bale Clamp, Pulp Bale Clamp T413 (VBS)

with valveblock sideshift dependent on the opening range - 2 hydraulic functions

Datasheet as pdf Find a contact person Call technical data

Specification:

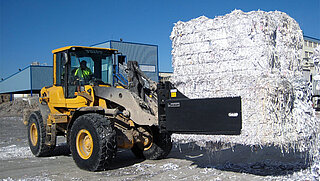

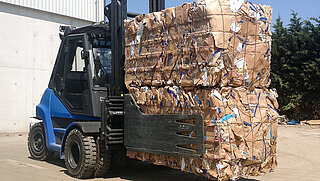

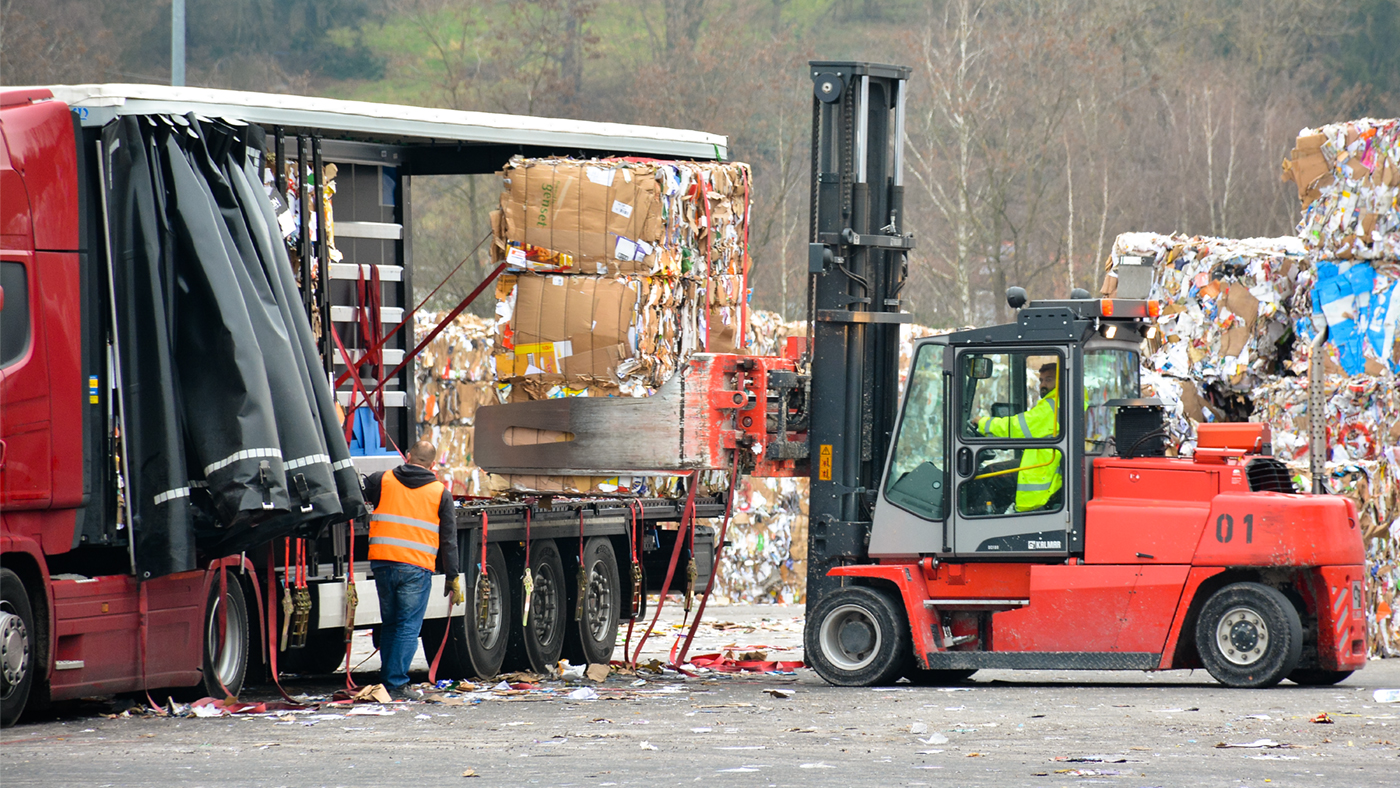

KAUP attachments of the class T413 designed with high visibility are mainly used for in-plant, non-palletised transportation of bales of paper, waste paper, tobacco and textiles or also boxes and containers. Pulp, foamed plastic (polystyrene) wool and Big-Bags can also be transported with specially designed clamping arms.

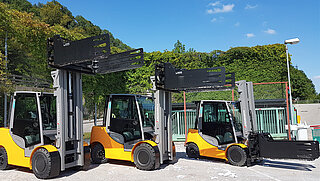

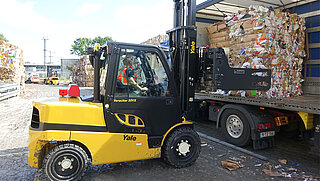

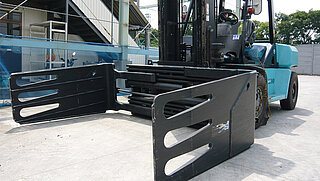

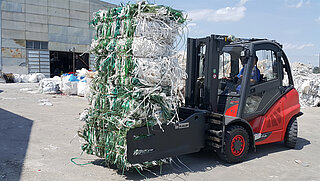

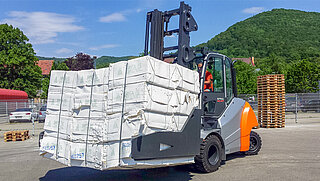

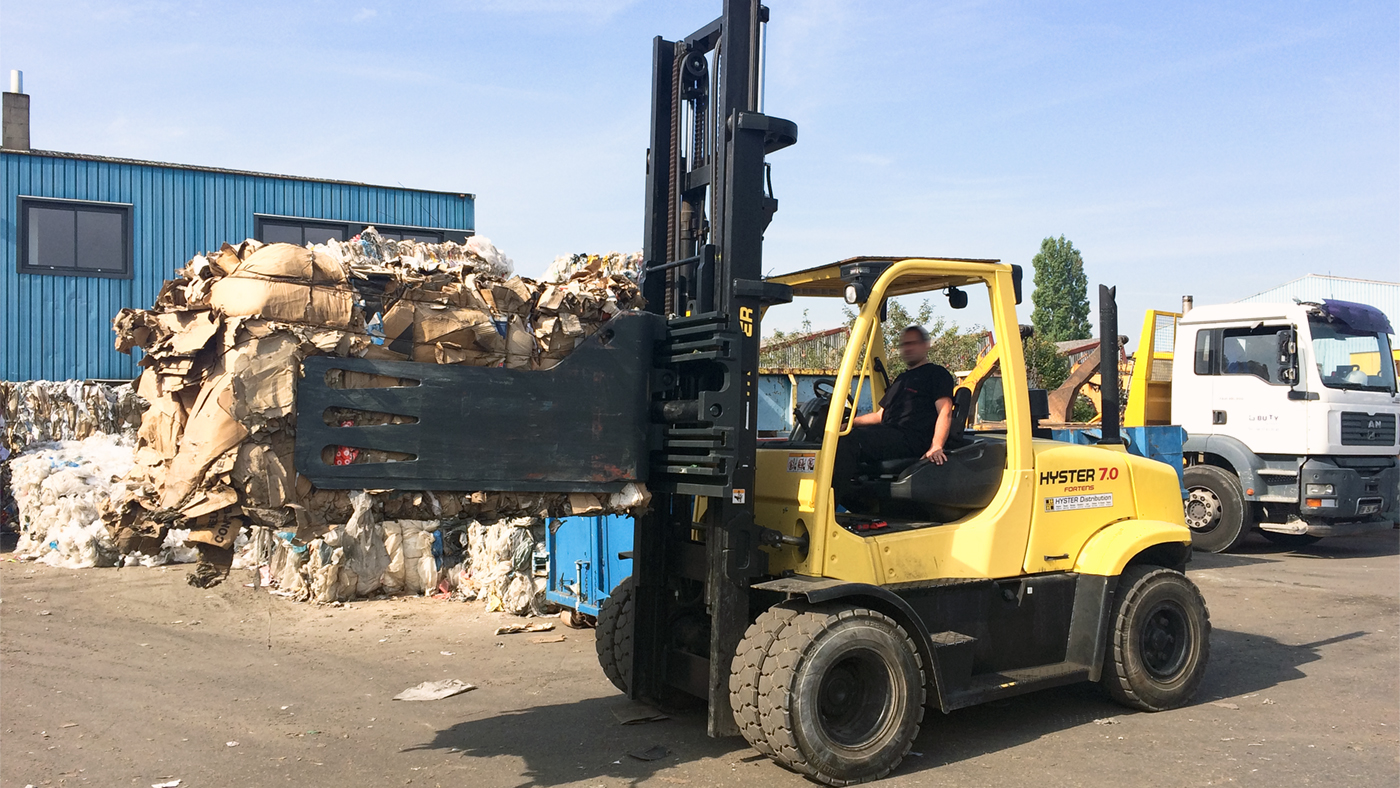

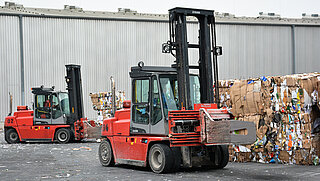

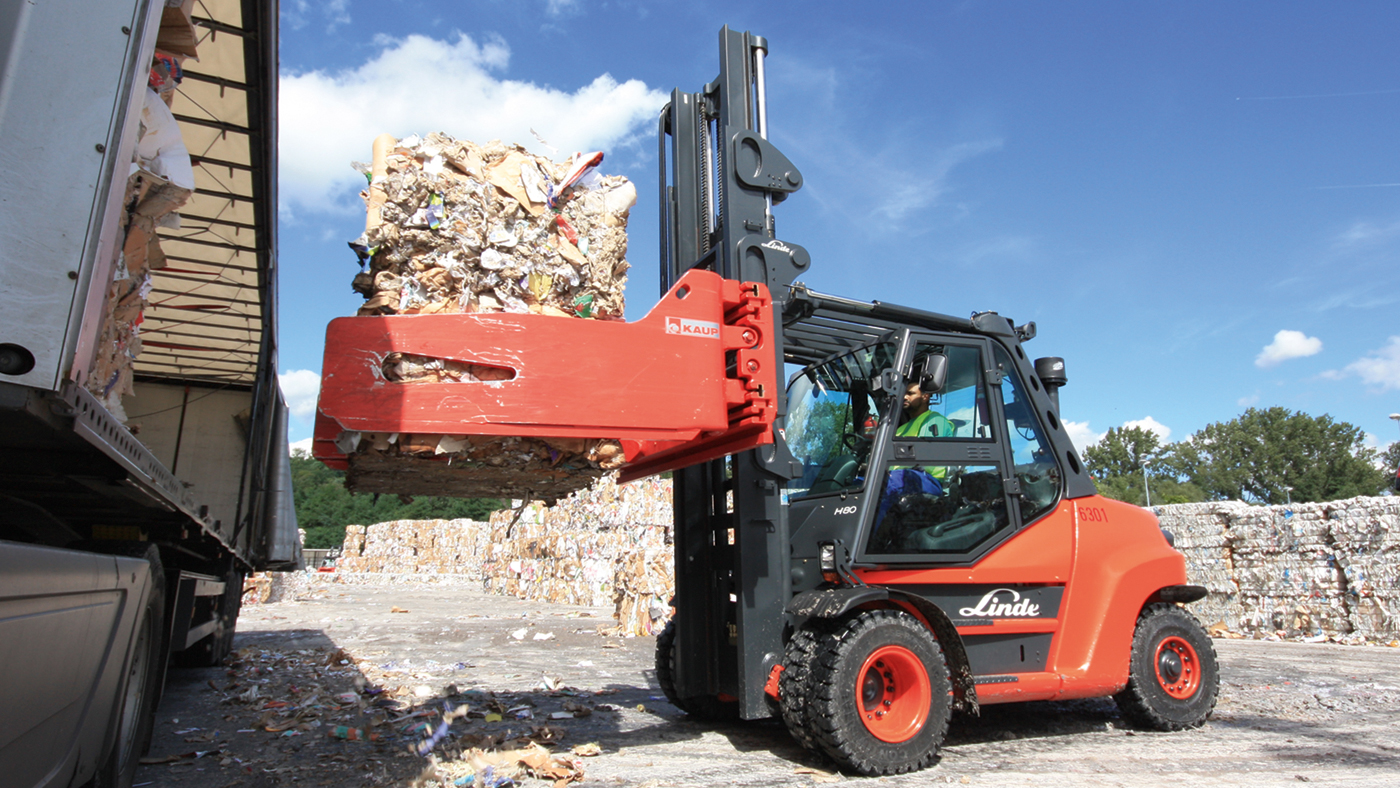

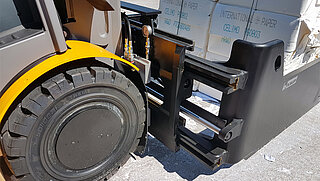

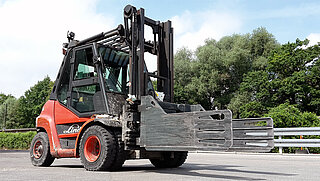

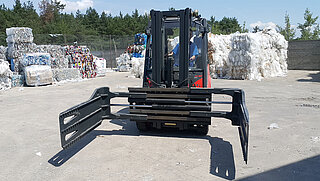

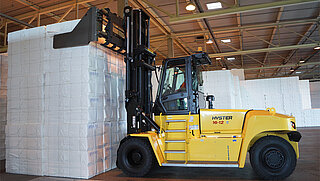

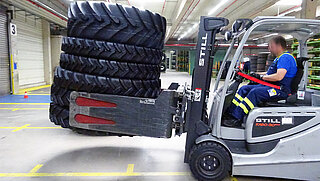

Product pictures and videos

Qualities:

  • Excellent price-performance ratio
  • Very good visibility
  • Solid strengthened design with KAUP clamp profiles from T-profiles and C-profiles
  • Solid slim arm design
  • Valveblock sideshift serially
  • Combination with KAUP Rotators possible
  • Customer specified modifications feasible



  • Bale clamps with higher capacities available upon request.
  • Variations in width, opening ranges and arm dimensions available upon request.
  • Also available without sideshift, model T403
  • Also available with 1 arm oscillating, model T413B-1.
  • Special version for Big Bags, based on the KAUP Bale Clamp, are also available.
  • Load Backrest see model T179.
Blue-white icon with the letter "V" in the centre and two arrows pointing left and right
Attachment has valveblock sideshift serially (integrated sideshift). Its design means that sideshift stroke is not available when the forks or arms are completely opened and/or completely closed.
Blue icon with the white outline of a drop with two arrows and the number 2 in the middle
Attachment is operated hydraulically, i.e. supplied with oil from the forklift truck’s hydraulic system. Truck requires two additional hydraulic functions.
Icon with a blue load backrest on a white background and the inscription T479 underneath it
Attachment can be fitted with load backrest model T479. The load backrest model T479.1 is suitable for fork positioners T160B and T466B up to 4.8T.
Square icon with the blue outline of a coat of arms and the letters "HD" in the centre
Attachment is available with cylinder and sideshifter protection.
Square icon with blue bracket fork, two arrows and a round warning sign above it
Attachment is designed with toe-in on the tips which should be taken into account when choosing the opening range.
