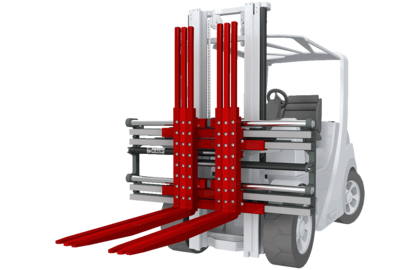

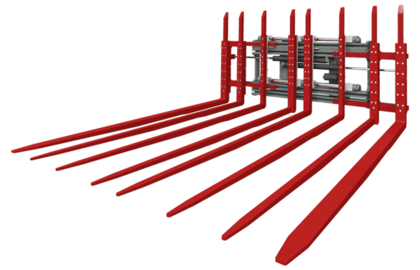

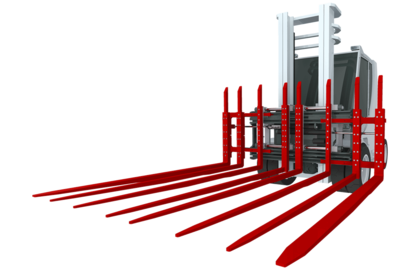

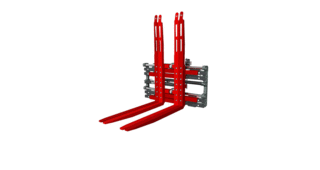

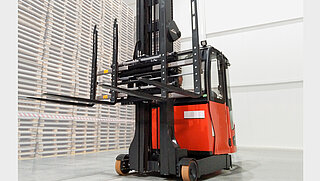

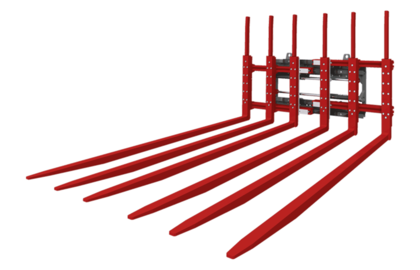

Double Pallet Handler T429C

with independent sideshift –

Datasheet as pdf Find a contact person Call technical data

Specification:

The newly designed Double Pallet Handler range T429C set new standards for Multi Pallet Handlers in lost load centre, residual capacity and visibility through and over the attachments to the fork tips and load. The practice orientated solid construction from T-profiles and C-profiles ensures highest stability and long operating hours with extended intervals between servicing and a minimum of required maintenance. At the same time the new Double Pallet Handler consumes 20% less energy.

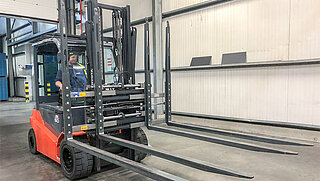

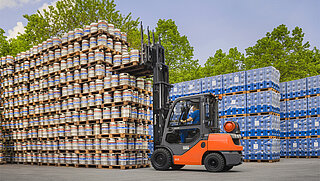

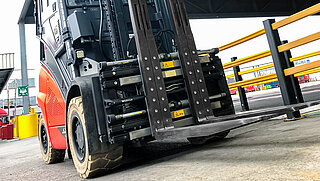

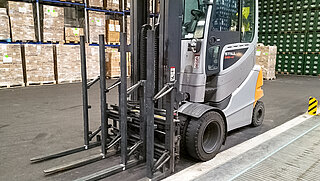

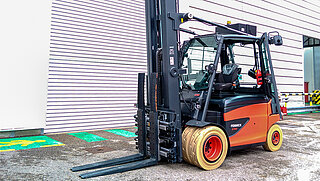

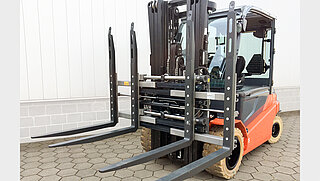

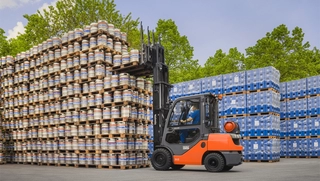

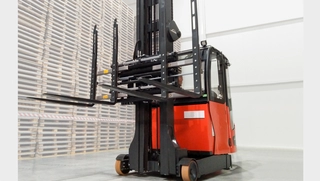

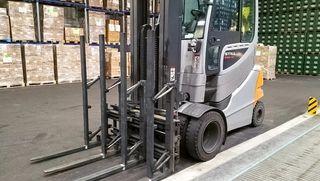

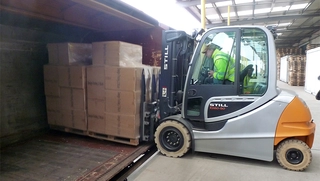

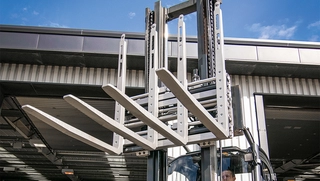

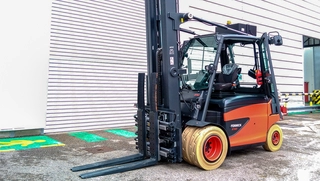

Product pictures and videos

Qualities:

  • Double Pallet Handler for heavy duty tasks
  • Excellent visibility conditions
  • Good residual capacity
  • Screw-on forks serially
  • Synchronized for quicker working speeds
  • Independent sideshift serially
  • Optional: single control of seperate fork pairs - adjustment of opening range to suit different types of pallets
  • Measurement „C” = alternatively 560 / 650 / 700 mm mechanically or hydraulically adjustable (solenoid valve required).
  • Measurement „H” = standard height 1.400 mm, other lengths and forms upon request.
  • Double solenoid valve for additional individual adjustment for each pair of forks available upon request. (add-on price)
  • 1) Optional with fork thickness 40 mm. (add-on price)
  • 2) Fork length optional 1.000 mm, 1.150 mm or 1.200 mm. (no add-on price)
  • 3) for handling of europallets crosswise we recommend the 1.400 mm wide body version
  • 4) Standard with wider fork shanks.
  • Locating claw on fork tip available upon request.

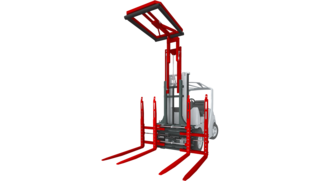

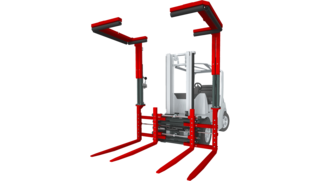

  • Double Pallet Handler with Load Stabilizer available upon request.
Blue-white icon representing the multiple pallet handling capability of the T429/T149Z

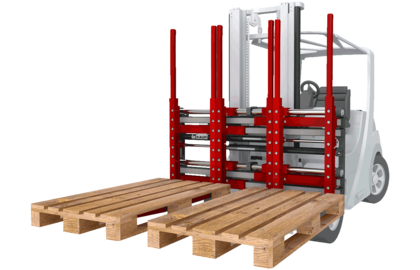

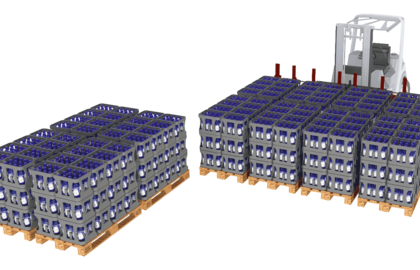

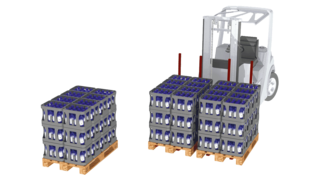

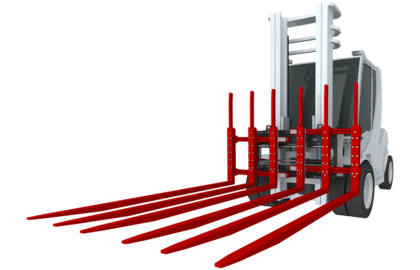

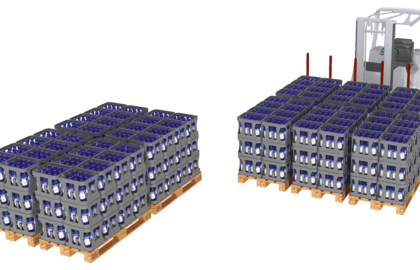

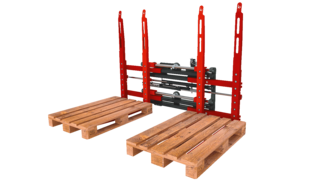

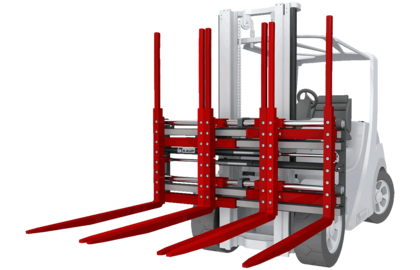

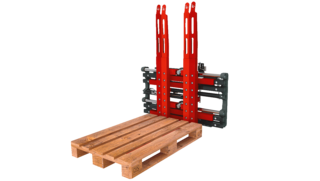

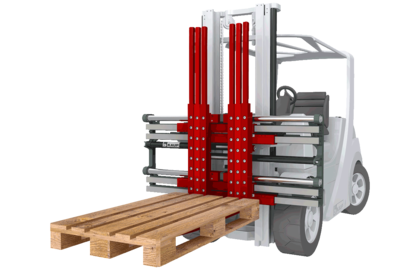

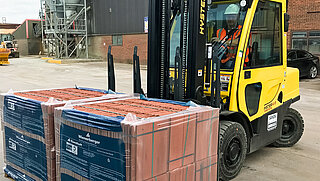

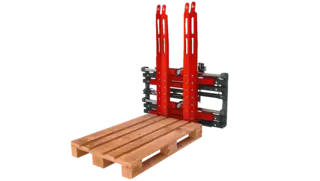

Multi Pallet Handling: 1 or 2 palletts next to each other.
Blue icon with the white outline of a drop with two arrows and the number 2 in the middle
Attachment is operated hydraulically, i.e. supplied with oil from the forklift truck’s hydraulic system. Truck requires two additional hydraulic functions.
Square icon with a white arrow pointing in two directions and the letter "S"
Attachment has separate sideshift as standard. The maximum allowable sideshift stroke (e.g. ± 100 mm) is always available independent of fork or arm position (with clamps or fork positioners).
Square icon with a blue hexagon on a white background and the inscription "Ex" in the middle
Attachment is available for operation in explosion hazardous areas.
Icon with bar chart in the form of three blue arrows with info circle in the upper right corner
Please note the additional information below the data table.
