Drum Tipping Clamp T406H/-2H

without sideshift - with hydraulically tiltable clamp arms 180° forward - 2 hydraulic functions

Datasheet as pdf Find a contact person

Technical data

Specification:

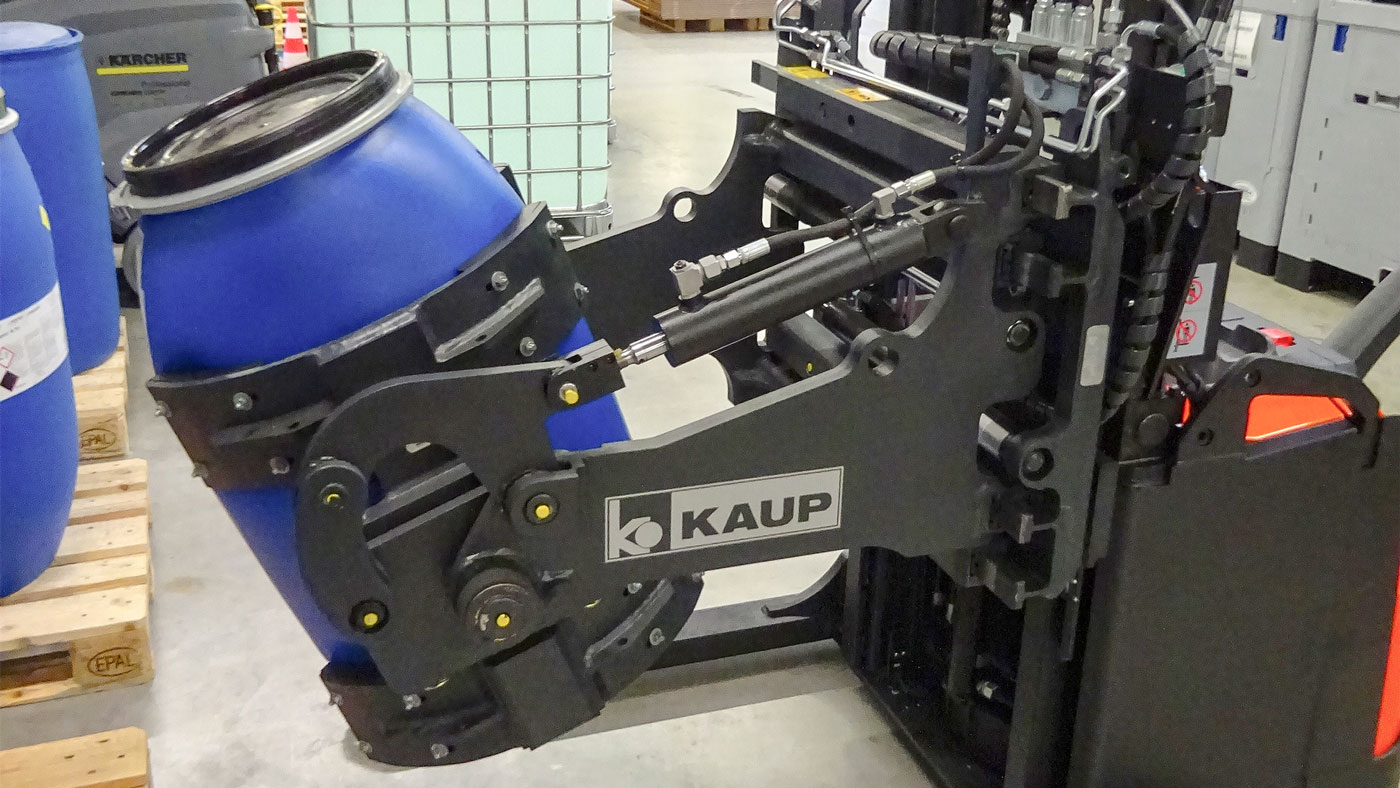

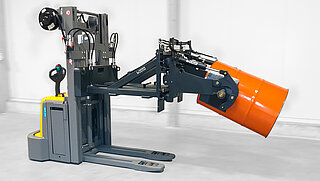

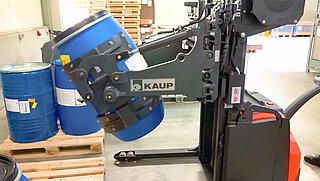

With the KAUP Drum Tipping Clamp T406 H/-2H it is possible that cylindrical steel drums, however, also other containers can be dumped ahead. Moreover, it is feasible with the T406-2H-version of this attachment to take up recumbent drums and to bring them in a vertical position. For it clamp arms are serially vulcanised with rubber.

Qualities:

  • Good visibility conditions
  • Good residual capacity
  • Robust construction
  • Up to 180° hydraulically tiltably



  • Single arm drive = H, dual arm drive = 2H. With single arm drive only drums in vertical position can be handeld.
  • The arms are coated with Remagrip (see coatings in the pricelist).
  • Drum Tipping arms are also available as slip-on version for KAUP Fork Clamps (see models T106AH and T106A-2H).
  • Also available with sideshift, model T416H (2H) on request
  • Tipping Clamps for specific purpose (garbage bins, containers) and higher capacities available upon request.
  • Available with arms for plastic drums upon request.
Your KAUP consultant
André Christ

Product details

Attachment is serially designed without sideshift. It can be fitted with separate or valveblock sidesift upon request.
Attachment is hydraulically tiltable by 180°.
Attachment is operated hydraulically, i.e. supplied with oil from the forklift truck’s hydraulic system. Truck requires two additional hydraulic functions.
Attachment can be fitted with load backrest model T479. The load backrest model T479.1 is suitable for fork positioners T160B and T466B up to 4.8T.

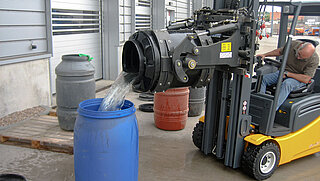

Attachment is available for operation in explosion hazardous areas.
Attachment can be fitted with different types of contact pad surfaces specifically suited to the application.

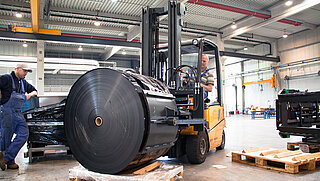

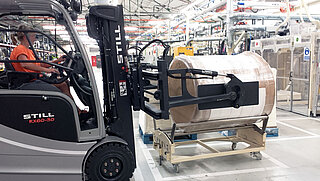

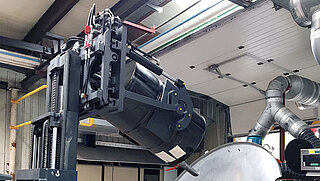

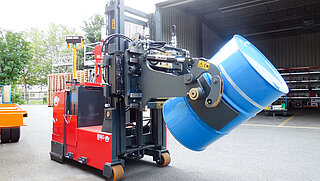

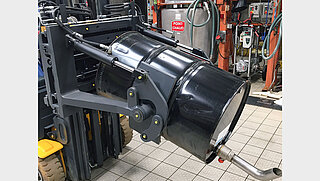

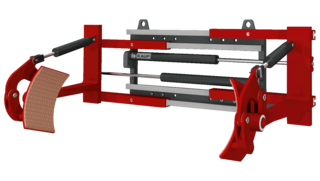

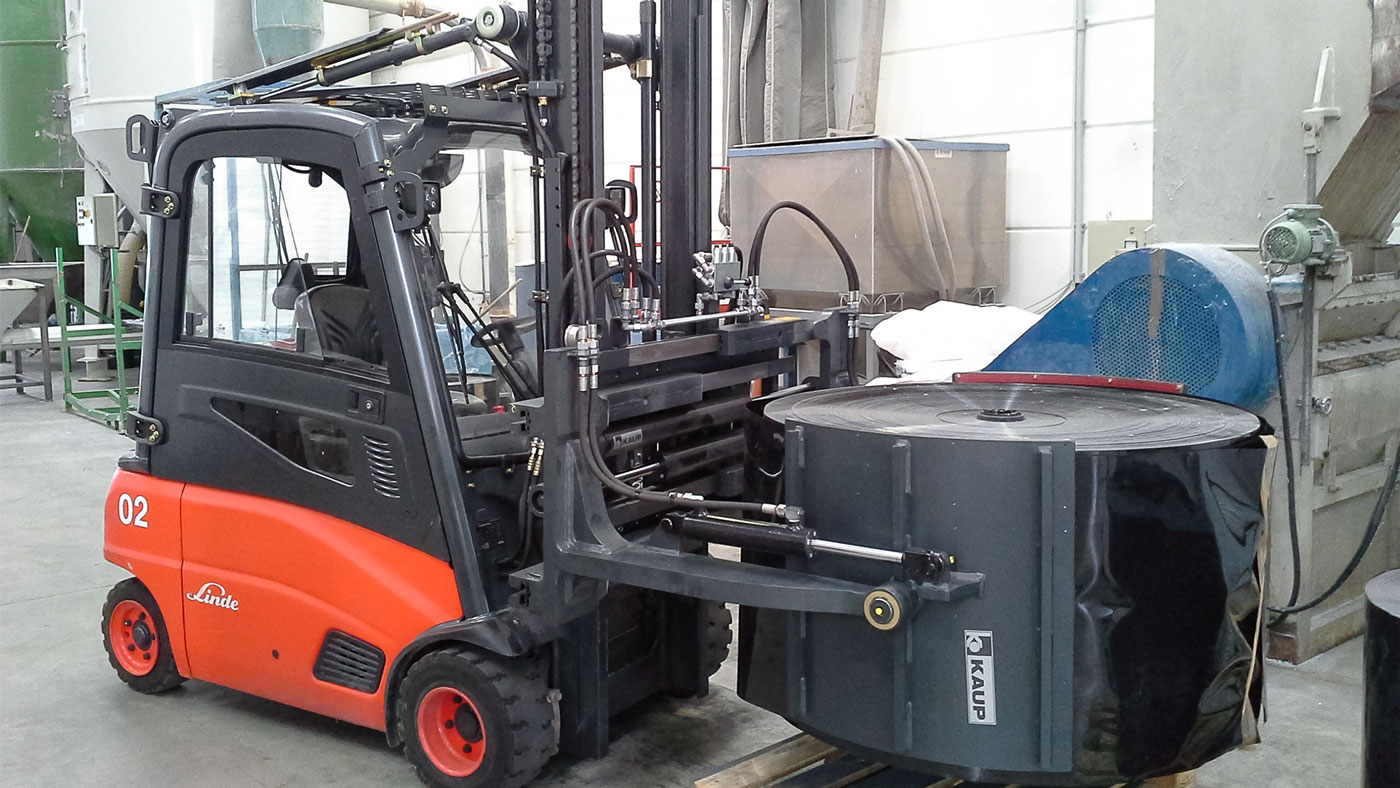

Product pictures and videos
