Fork Positioner for reach trucks T160BZ

Without sideshift - 1 hydraulic function

Datasheet as pdf Find a contact person Call technical data

Specification:

KAUP, as leading manufacturer of attachments, also has a comprehensive range of attachments for Reach Trucks. The Fork Positioner type T160BZ is one of them. Individual details regarding wheel arms and ground clearance as well as the possible width of the attachment and other technical details make Reach Trucks very complex. Therefore it is advisable to contact our specialists directly for an individual consultation regarding our attachments and accessories for Reach Trucks.

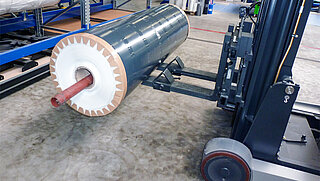

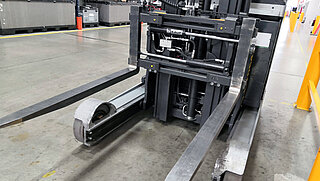

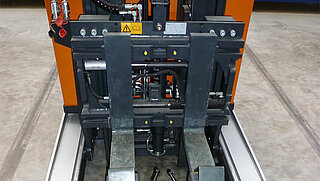

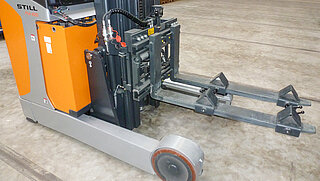

Product pictures and videos

Qualities:

  • Hook-on Fork Positioner for Reach Trucks
  • Very good residual capacity
  • Excellent visibility
  • Supplied with welded forks
  • Supplied optionally with screw on forks for wear intensive operation
  • Not suitable for clamping between the forks.
  • Also available with valveblock sideshift.
  • Load backrest see model T479 and T479.1
  • with screw-on forks available upon request: ZA-Version
Square blue icon with white crossed-out arrow pointing in two directions
Attachment is serially designed without sideshift. It can be fitted with separate or valveblock sidesift upon request.
Blue icon with the white outline of a drop with two arrows and the number 1 in the middle
Attachment is operated hydraulically, i.e. supplied with oil from the forklift truck’s hydraulic system. Truck requires one additional hydraulic function.
Icon with blue load backrest on white background and the inscription T479/T479.1 below it
Attachment can be fitted with load backrest model T479. The load backrest model T479.1 is suitable for fork positioners T160B and T466B up to 4.8T.
Icon with inscription T180 and blue image of a forklift fork on white background
Attachment supplied serially without forks. All forks in accordance with ISO 2330 can be used. Matching forks model T180 are available.
