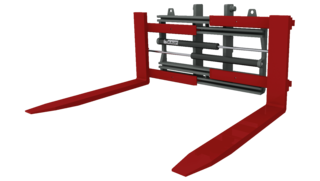

Fork Positioner, integrated T411 BZI

with valveblock sideshift, dependent on opening range – 2 hydraulic functions

Datasheet as pdf Find a contact person Call technical data

Specification:

The KAUP integrated Fork Positioner T411BZI is a robust attachment with very large opening ranges suitable for exceptionally heavy duty operation - ideal for uneven surfaces. The construction gives an optimal view to the fork tips. The residual capacity is, due to the integration in the mast of the forklift truck, higher than the T411BZ range.

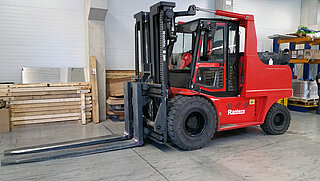

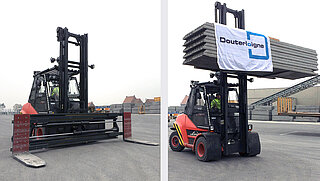

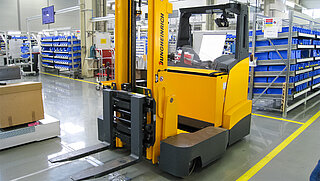

Product pictures and videos

Qualities:

  • Very large opening ranges
  • Valve block sideshift - dependent on opening range - serially
  • Screw-on forks optional



  • 1) Transport of europallets lengthwise not possible.
  • CofG and weight measurements do not take the cheek plates into account.
  • Fork carriage drawings, roller studs and chain anchors to be supplied by customer if necessary.
  • Not suitable for clamping between the forks.
  • with screw-on forks available upon request: T411BZIA
  • Load Backrest see model T179.
  • Also available without sideshift, model T401BZI
Blue-white icon with the letter "V" in the centre and two arrows pointing left and right
Attachment has valveblock sideshift serially (integrated sideshift). Its design means that sideshift stroke is not available when the forks or arms are completely opened and/or completely closed.
Blue icon with the white outline of a drop with two arrows and the number 2 in the middle
Attachment is operated hydraulically, i.e. supplied with oil from the forklift truck’s hydraulic system. Truck requires two additional hydraulic functions.
Square icon with a blue hexagon on a white background and the inscription "Ex" in the middle
Attachment is available for operation in explosion hazardous areas.
Icon with blue load backrest on white background and the inscription T179 below it
Attachment can be fitted with load backrest model T179.
Icon with forks from above with several arrows pointing inwards and a stop sign above it
Attachment is specially designed for the function fork positioning and is not suitable for clamping between the forks.
Square icon with the blue outline of a coat of arms and the letters "HD" in the centre
Attachment is available with cylinder and sideshifter protection.
Icon with bar chart in the form of three blue arrows with info circle in the upper right corner
Please note the additional information below the data table.
Square icon with blue bracket fork, two arrows and a round warning sign above it
Attachment is designed with toe-in on the tips which should be taken into account when choosing the opening range.
