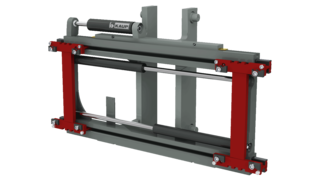

Fork Positioner, integrated T466BI

with independent sideshift - without forks - for forks acc. to ISO 2330 - 2 hydraulic functions

Datasheet as pdf Find a contact person

Technical data

Specification:

The KAUP integrated Fork Positioner T466BI has been specially designed with optimised visibility and residual capacity. Compared to hook-on Fork Positioners in the T466 range with even better, higher residual capacities this attachment is manufactured from well proven components and is suitable for moderately heavy duty tasks. The qualities of the range of T466BI Fork Positioners are particularly effective when different sizes of loads are regularly transported or different kinds of transportation are used - for example in logistics.

Qualities:

  • For moderately heavy operation - complete program with capacities of up to 10 tons
  • Very good residual capacity
  • Excellent visibility
  • Supplied with welded forks
  • Supplied optionally with screw on forks for wear intensive operation (A-version)
  • Independent sideshift serially



  • 1) 4,8T with capacity (kg/mm) 2.700/1.200 available upon request.
  • CofG and weight measurements do not take the cheek plates into account.
  • Load backrest see model T479 and T479.1
  • Forks see model T180.
  • Forks manually adjustable.

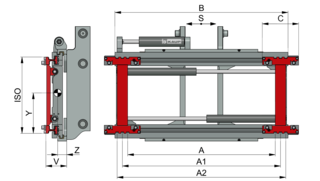

  • Fork carriage drawings, roller studs and chain anchors to be supplied by customer if necessary.
  • Not suitable for clamping between the forks.
Your KAUP consultant
André Christ

Product details

Attachment has separate sideshift serially. The maximum allowable sideshift stroke (e.g. ± 100 mm) is always available independent of fork or arm position (with clamps or fork positioners).
Attachment is operated hydraulically, i.e. supplied with oil from the forklift truck’s hydraulic system. Truck requires two additional hydraulic functions.
Attachment supplied serially without forks. All forks in accordance with ISO 2330 can be used. Matching forks model T180 are available.
Attachment can be fitted with load backrest model T479. The load backrest model T479.1 is suitable for fork positioners T160B and T466B up to 4.8T.
Attachment is available for operation in explosion hazardous areas.
Attachment is specially designed for the function fork positioning and is not suitable for clamping between the forks.

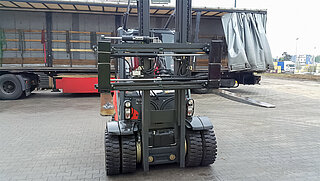

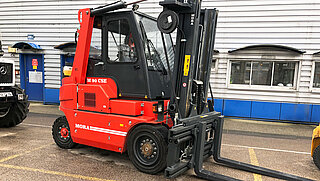

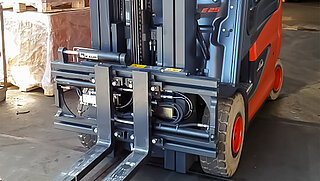

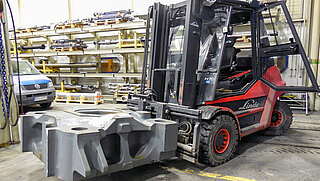

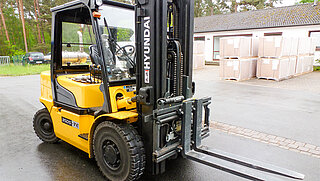

Product pictures and videos
