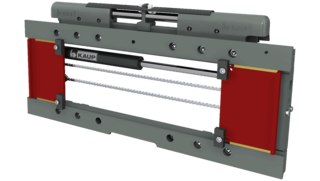

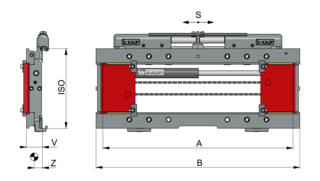

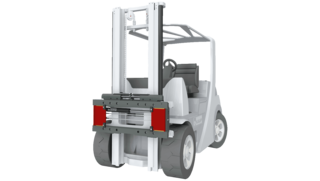

Fork Positioner T163SN

with independent sideshift - without forks - for forks acc. to ISO 2330 - 2 hydraulic functions

Datasheet as pdf Find a contact person Call technical data

Specification:

Simply designed and therefore extremely economical, the KAUP Fork Positioner T163SN has absolutely symmetrical fork adjustment with synchronism via roller chain. This range is based on the Sideshifter T151-P2 rangewith corresponding capacities.

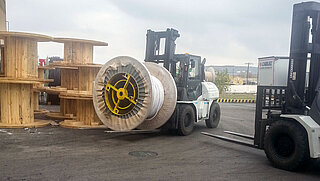

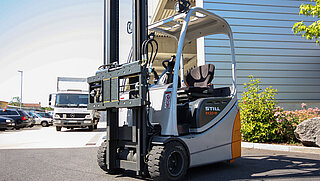

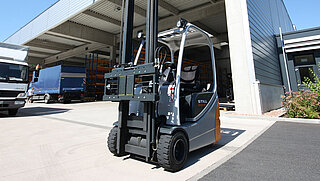

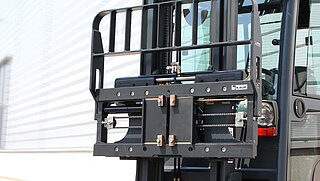

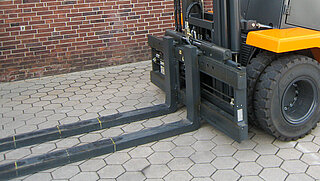

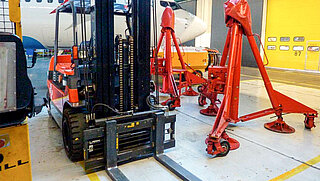

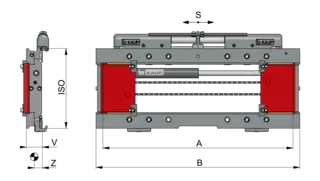

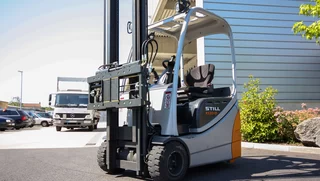

Product pictures and videos

Qualities:

  • For light duty (indoors e.g. in dirt free conditions)
  • Synchronism via roller chain
  • Original forklift trucks useable
  • Construction width of the attachment and opening range is not dependent on the width of the forklift truck carriage
  • With sideshift (T163SN) or without sideshift (T163N)



  • Not suitable for clamping between the forks.
  • Forks see model T180.
  • The original forks of the forklift truck, up to length of 1.600 mm, can be used. If using longer forks the minimum bracket width to be selected is 240 mm (recommended width).
  • Load backrest see model T173
  • Also available without sideshift, model T163N
Square icon with a white arrow pointing in two directions and the letter "S"
Attachment has separate sideshift as standard. The maximum allowable sideshift stroke (e.g. ± 100 mm) is always available independent of fork or arm position (with clamps or fork positioners).
Blue icon with the white outline of a drop with two arrows and the number 2 in the middle
Attachment is operated hydraulically, i.e. supplied with oil from the forklift truck’s hydraulic system. Truck requires two additional hydraulic functions.
Icon with inscription T180 and blue image of a forklift fork on white background
Attachment supplied serially without forks. All forks in accordance with ISO 2330 can be used. Matching forks model T180 are available.

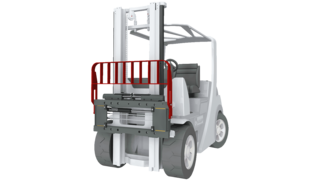

Icon with blue load backrest on white background and the inscription T173 below it
Attachment can be fitted with load backrest model T173.
Icon with forks from above with several arrows pointing inwards and a stop sign above it
Attachment is specially designed for the function fork positioning and is not suitable for clamping between the forks.
