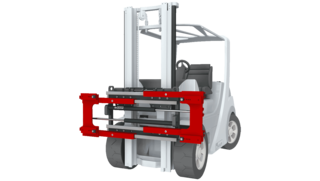

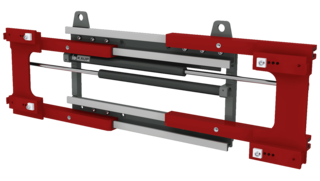

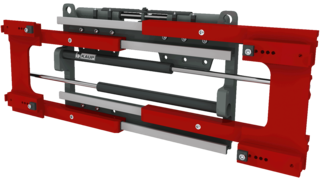

Fork Positioner T410Z

with independent sideshift

Datasheet as pdf Find a contact person Call technical data

Specification:

The robust KAUP Fork Positioner T410Z is the alternative to Fork Positioner T466B when a large opening range is required on a small construction width. This attachment is ideal for heavy duty operation and is supplied without forks. Numerous individual configurations are possible.

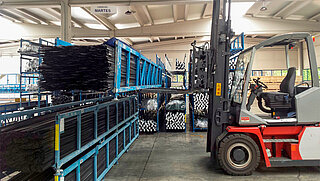

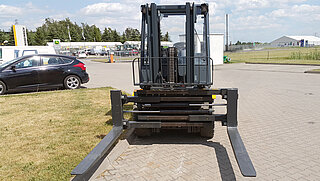

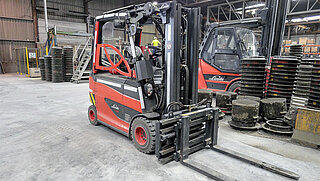

Product pictures and videos

Qualities:

  • Strengthened design
  • Good residual capacity
  • Independent sideshift serially
  • Original forks or Telescopic Forks can be used



  • 1) Transport of europallets lengthwise not possible.
  • Not suitable for clamping between the forks.
  • Forks see model T180.

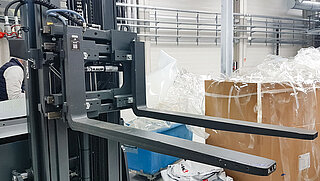

  • Also available without sideshift, model T400Z
  • Fork Positioner with cylinder- and sideshift protection upon request.
  • Load Backrest see model T179.
Square icon with a white arrow pointing in two directions and the letter "S"
Attachment has separate sideshift as standard. The maximum allowable sideshift stroke (e.g. ± 100 mm) is always available independent of fork or arm position (with clamps or fork positioners).
Blue icon with the white outline of a drop with two arrows and the number 1 in the middle
Attachment is operated hydraulically, i.e. supplied with oil from the forklift truck’s hydraulic system. Truck requires one additional hydraulic function.
Icon with inscription T180 and blue image of a forklift fork on white background
Attachment supplied serially without forks. All forks in accordance with ISO 2330 can be used. Matching forks model T180 are available.
Icon with a blue load backrest on a white background and the inscription T479 underneath it
Attachment can be fitted with load backrest model T479. The load backrest model T479.1 is suitable for fork positioners T160B and T466B up to 4.8T.
Square icon with a blue hexagon on a white background and the inscription "Ex" in the middle
Attachment is available for operation in explosion hazardous areas.
Icon with forks from above with several arrows pointing inwards and a stop sign above it
Attachment is specially designed for the function fork positioning and is not suitable for clamping between the forks.
Square icon with the blue outline of a coat of arms and the letters "HD" in the centre
Attachment is available with cylinder and sideshifter protection.
Square icon with blue bracket fork, two arrows and a round warning sign above it
Attachment is designed with toe-in on the tips which should be taken into account when choosing the opening range.
