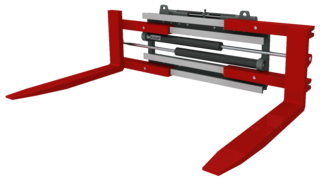

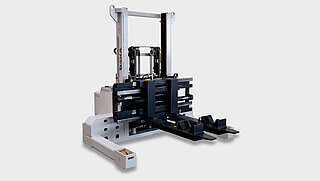

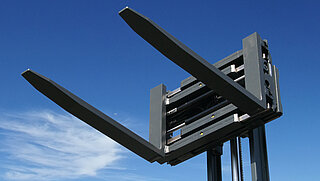

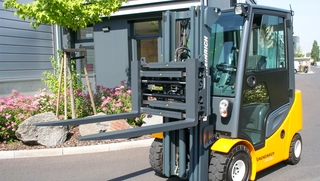

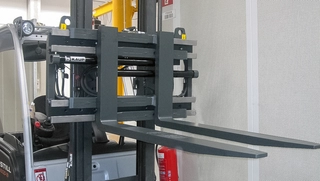

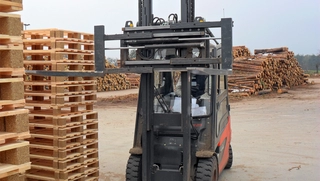

Fork Positioner T411Z

with independent sideshift - 2 hydraulic functions

Datasheet as pdf Find a contact person

Technical data

Specification:

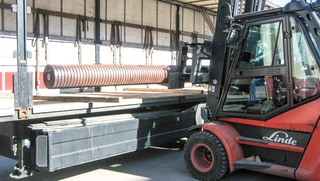

The KAUP hook-on Fork Positioner T411Z is a robust attachment for exceptionally heavy duty operation - ideal for uneven surfaces. Spreading forces induced, for example when handling coils (several) cable drums, rolls or wire coils, can readily be supported due to the large overlap of sectional profiles between fork guide and clamp body. Speedy working cycles and millimetre accurate positioning of the transport load is possible.

Qualities:

  • Good residual capacity
  • Good visibility conditions
  • Independent sideshift serially - alternatively valve block sideshift
  • Opening range significantly larger than the construction width
  • Use of longer forks possible



  • 1) Transport of europallets lengthwise not possible.
  • Not suitable for clamping between the forks.
  • with screw-on forks available upon request: T411 ZA

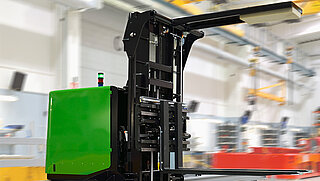

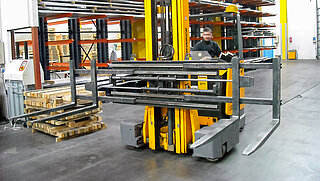

  • Also available without sideshift, model T401Z
  • Load Backrest see model T179.
Your KAUP consultant
André Christ

Product details

Attachment has separate sideshift serially. The maximum allowable sideshift stroke (e.g. ± 100 mm) is always available independent of fork or arm position (with clamps or fork positioners).
Attachment is operated hydraulically, i.e. supplied with oil from the forklift truck’s hydraulic system. Truck requires two additional hydraulic functions.

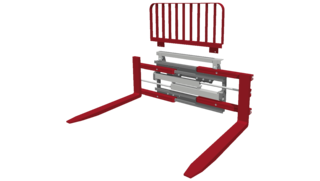

Attachment can be fitted with load backrest model T479. The load backrest model T479.1 is suitable for fork positioners T160B and T466B up to 4.8T.
Attachment is available for operation in explosion hazardous areas.
Attachment is specially designed for the function fork positioning and is not suitable for clamping between the forks.
Attachment is available with cylinder and sideshifter protection.
Attachment is designed with toe-in on the tips which should be taken into account when choosing the opening range.

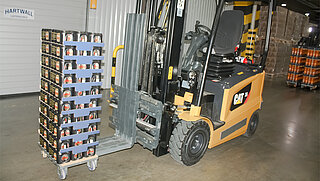

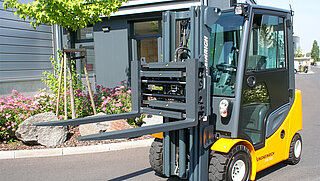

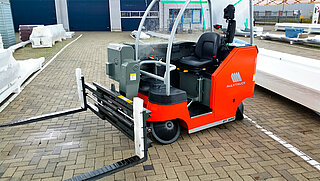

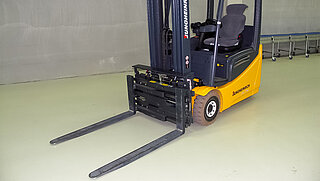

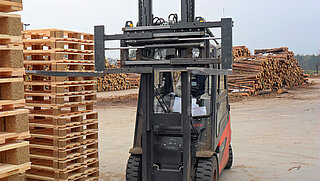

Product pictures and videos
