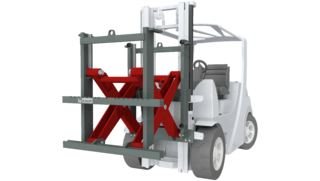

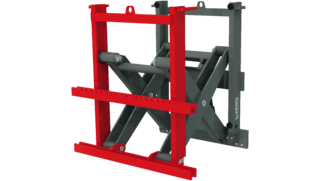

Pantograph T149 / T149Z

1 hydraulic function

Datasheet as pdf Find a contact person Call technical data

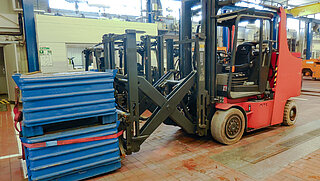

The KAUP Pantograph type T149/T149Z is put into operation whenever Telescopic Forks or Reach Forks cannot be used due to the thickness of the forks. The knife forks of this attachment can pick up loads with very little bottom clearance and stacked double deep for transportation. Additionally the Pantograph T149/T149Z can be combined with a whole range of other KAUP attachments - for example Bale Clamps and Roll Clamps.

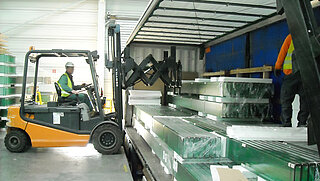

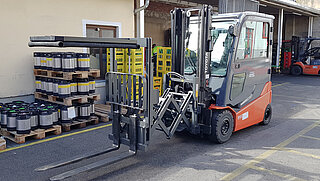

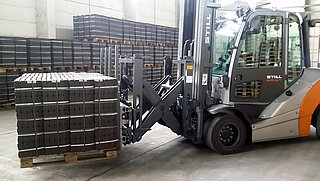

Product pictures and videos


  • Original forks useable
  • Solid design
  • Sideshift optionally

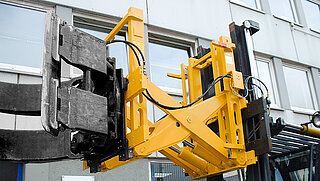

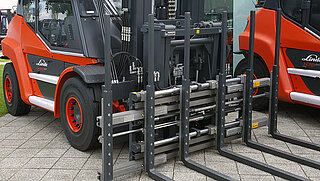

  • 2/3T149Z suitable to attach clamps and multi pallet handlers.
  • The capacities are related to the extended pantograph
  • Available with sideshift function upon request.
  • Max. distance from fork tip to mast = V + C + thickness of FLT carriage + fork lenght.
  • Other fork carriage widths available upon request.
Blue icon with the white outline of a drop with two arrows and the number 1 in the middle
Attachment is operated hydraulically, i.e. supplied with oil from the forklift truck’s hydraulic system. Truck requires one additional hydraulic function.
Square blue icon with white crossed-out arrow pointing in two directions
Attachment is serially designed without sideshift. It can be fitted with separate or valveblock sidesift upon request.
Square icon with a blue hexagon on a white background and the inscription "Ex" in the middle
Attachment is available for operation in explosion hazardous areas.
Icon with inscription T180 and blue image of a forklift fork on white background
Attachment supplied serially without forks. All forks in accordance with ISO 2330 can be used. Matching forks model T180 are available.
