Reach Fork T140SV

with independent sideshift - 2 hydraulic functions

Datasheet as pdf Find a contact person Call technical data

Specification:

KAUP Reach Forks T140SV combine the advantages of reach trucks - narrow working aisles with the lost load centre close to the front chassis - with those of the counterbalance forklift truck. The mobile fork on the backrest - the Reach Fork - inserts under the pallet. At the same time the fixed bearing forks support the loading process. By retracting the Reach Forks and backrest the load is moved to the bearing area of the forklift truck. It can then be picked up and transported.

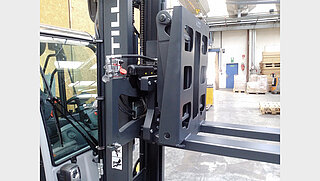

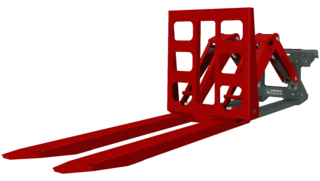

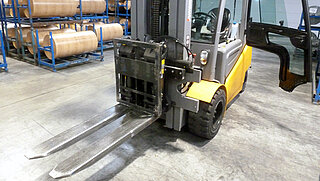

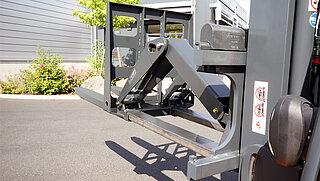

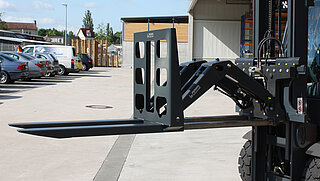

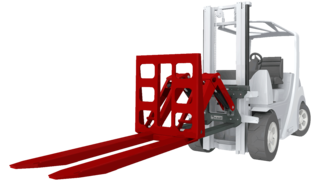

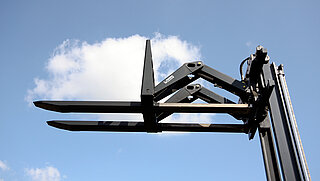

Product pictures and videos

Qualities:

  • Very good residual capacity
  • Good visibility conditions
  • Solid design
  • Sideshift serially



  • Max. distance from fork tip to mast = G + V + C + thickness of FLT carriage.
  • Also available without sideshift, model T140
  • Without sideshift the lost load center is reduced by approx. 30 mm
Blue icon with the white outline of a drop with two arrows and the number 2 in the middle
Attachment is operated hydraulically, i.e. supplied with oil from the forklift truck’s hydraulic system. Truck requires two additional hydraulic functions.
Square icon with a white arrow pointing in two directions and the letter "S"
Attachment has separate sideshift as standard. The maximum allowable sideshift stroke (e.g. ± 100 mm) is always available independent of fork or arm position (with clamps or fork positioners).
