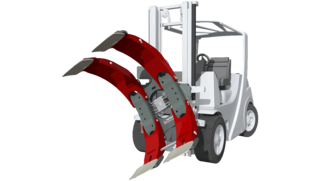

Rotating Roll Clamp T458B-2

360° rotation continuous - short arm hydraulically adjustable in any turning position - split pressure plate - 2 hydraulic funct

Datasheet as pdf Find a contact person

Technical data

Specification:

With the new view-optimised designed KAUP Rotating Roll Clamp T458B-2 roles and pipes can be taken up and transported carefully. The contact pad of this attachment is divided and allows in such a way that at the same time two roles - also with different diameters - can be transported stacked. This makes this attachment everywhere inalienable where the dandling of paper rolls, concrete tubes and similar is essential.

Qualities:

  • Very good visibility conditions
  • Favourable lost load and weight
  • Solid, slender arm construction
  • Different contact pad coatings available
  • Rotation 360° endlessly
  • Limitation on rotation 180° optionally
  • Service friendly
  • 1) Version with fixed short arm
  • Pressure plates with coating: Standard polyurethane coating Poly-1
  • Capacity related to max. roll diameter.
  • Optional: The short arm can be hydraulically adjusted at a rotation angle of 45°.
  • Optional: restricted to 180° rotation, Tissue version, short arm with continuous contact pads.
  • For taking up horizontal rolls, 5-degree mast forward tilt is required.
  • Pressure plate coverings see under accessories.
  • Attachment with sideshift Model T498B-2 (add-on price).
Your KAUP consultant
André Christ

Product details

Attachment rotates hydraulically by 360° endless in both directions.
Attachment is operated hydraulically, i.e. supplied with oil from the forklift truck’s hydraulic system. Truck requires two additional hydraulic functions.
Attachment is serially designed without sideshift. It can be fitted with separate or valveblock sidesift upon request.
Attachment can be fitted with different types of contact pad surfaces specifically suited to the application.
Attachment is available restricted to 180° rotation.
