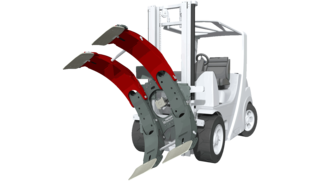

Rotating Roll Clamp T458BC

360° rotation continuous - short arm fixed - 2 hydraulic functions

Datasheet as pdf Find a contact person Call technical data

Specification:

With the view-optimised designed KAUP Rotating Roll Clamp T458BC all kinds of roles can be taken up carefully and be advanced. This makes this attachment everywhere inalienable where the Handling of paper rolls, concrete tubes and similar one is essential.

Product pictures and videos

Qualities:

Very good visibility conditions
Favorable lost load and weight
Solid, slender arm construction
Different contact pad coatings available
Rotation 360° endlessly
Limitation on rotation 180° optionally
Service friendly

Optional: contact pad coatings (standard polyurethane coating Poly-1).
Capacity related to max. roll diameter.
For taking up horizontal rolls, 5-degree mast forward tilt is required.
Optional: restricted to 180° rotation, continuous contact pads.
Pressure plate coverings see under accessories.
Attachment with sideshift Model T498BC (add-on price).

Attachment rotates hydraulically by 360° endless in both directions.

Attachment is operated hydraulically, i.e. supplied with oil from the forklift truck’s hydraulic system. Truck requires two additional hydraulic functions.

Attachment is serially designed without sideshift. It can be fitted with separate or valveblock sidesift upon request.

Attachment can be fitted with different types of contact pad surfaces specifically suited to the application.

Attachment is available restricted to 180° rotation.
