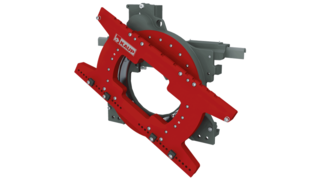

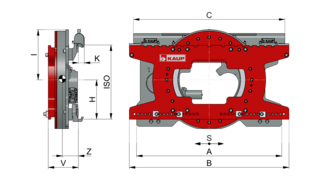

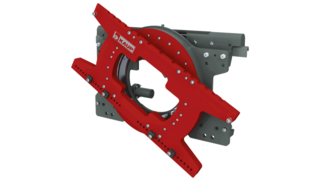

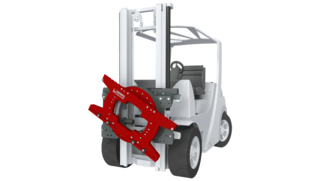

Rotator 360° endless T391

with independent sideshift - 2 hydraulic functions

Datasheet as pdf Find a contact person Call technical data

Specification:

As opposed to the entrance models of the rotating attachments the KAUP Rotator 360° endless T391 owns a sideshift. It allows an even more exact work with the device.

According to application case and customer wish the gear can be positioned at two different places. Differing lost loads and residual capacities are the results.

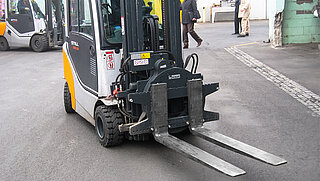

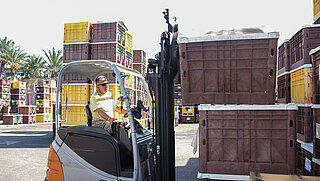

Product pictures and videos

Qualities:

  • Good visibility conditions
  • Good residual capacity
  • Rotation 360° endlessly
  • Robust construction with gear drive
  • Sideshift serially
  • Original forks usable
  • Lateral supporting fork and load stabilizers optionally



  • Rotators with higher rotating speeds available upon request
  • Other fork carriage widths available upon request.
  • Removable lateral supporting fork 800 mm available against add-on price
  • Removable and foldable lateral supporting fork 800 mm available against add-on price

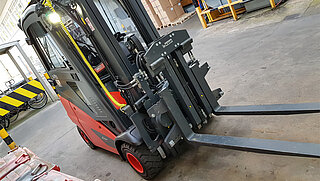

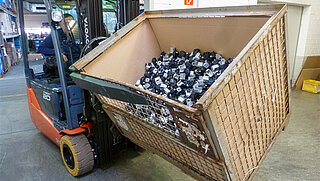

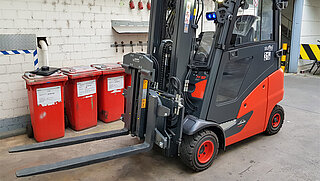

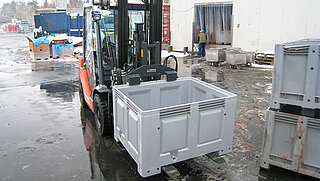

  • Downhold T167 to empty metal grid boxes etc on request
  • Matching forks for KAUP-Rotators on request.
  • When forks are used in combination with a Rotator extremely high strain is applied to the lower fork angle when rotating a load which in turn strains the lower brackets.
  • For this type of operation KAUP recommends forks with strengthened lower brackets. Strengthened lower brackets can be ordered for all ISO forks model T180.
Square icon with a circular arrow and the centrally placed inscription "360 degrees"
Attachment rotates hydraulically by 360° endless in both directions.
Square icon with a white arrow pointing in two directions and the letter "S"
Attachment has separate sideshift as standard. The maximum allowable sideshift stroke (e.g. ± 100 mm) is always available independent of fork or arm position (with clamps or fork positioners).
Blue icon with the white outline of a drop with two arrows and the number 2 in the middle
Attachment is operated hydraulically, i.e. supplied with oil from the forklift truck’s hydraulic system. Truck requires two additional hydraulic functions.
Square icon with a blue hexagon on a white background and the inscription "Ex" in the middle
Attachment is available for operation in explosion hazardous areas.
Icon with inscription T180 and blue image of a forklift fork on white background
Attachment supplied serially without forks. All forks in accordance with ISO 2330 can be used. Matching forks model T180 are available.
Icon with bar chart in the form of three blue arrows with info circle in the upper right corner
Please note the additional information below the data table.
