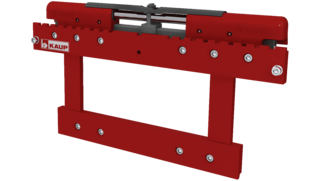

Sideshifter for Reach Trucks 2 T151 P2

1 hydraulic function

Datasheet as pdf Find a contact person Call technical data

Specification:

KAUP, as leading manufacturer of attachments, has a comprehensive range of attachments for Reach Trucks. The Sideshifter for Reach Trucks 2T151P2 is the right choice when palletised goods must be shifted laterally on a regular basis. The Sideshifter optimises in-plant material handling.

Qualities:

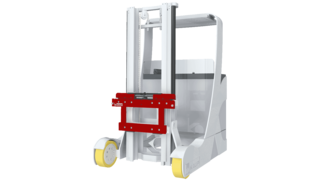

Design and fork carriage width specially adapted for operation with Reach Trucks
Fork carriage tilt for Reach Trucks with fixed mast possible
Sideshift stroke of ± 100 mm serially - less sideshift stroke possible

Load Backrest see model T179.
Other construction widths available upon request.
Optional in explosion proof version

Attachment is operated hydraulically, i.e. supplied with oil from the forklift truck’s hydraulic system. Truck requires one additional hydraulic function.

Attachment can be fitted with load backrest model T179.

Attachment is available for operation in explosion hazardous areas.

Attachment supplied serially without forks. All forks in accordance with ISO 2330 can be used. Matching forks model T180 are available.
