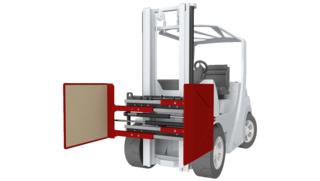

Appliance Clamp T413G

with independent sideshift –

Datasheet as pdf Find a contact person Call technical data

Specification:

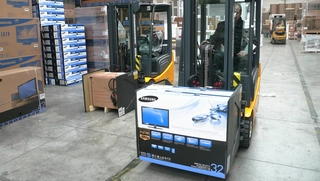

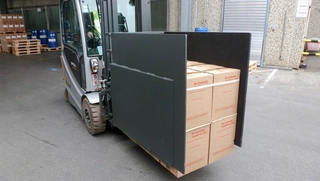

The KAUP Appliance Clamp T413G is used for the transport of white and brown product as well as other wide loading property. Equipped with very slender arms this attachment is suited particularly for the truck and container loading.

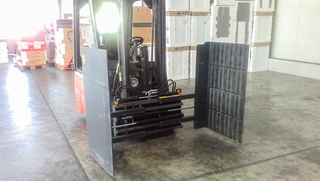

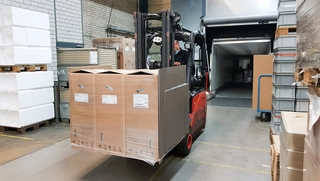

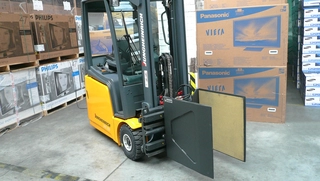

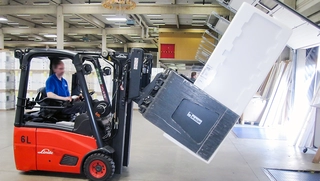

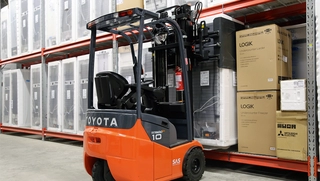

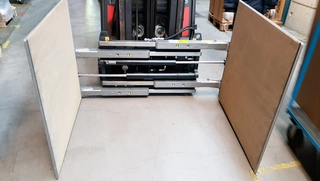

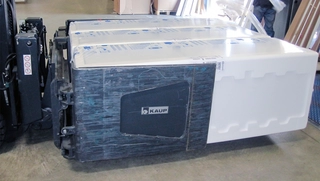

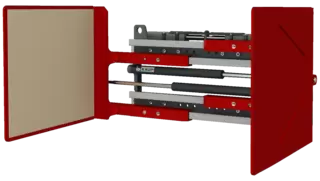

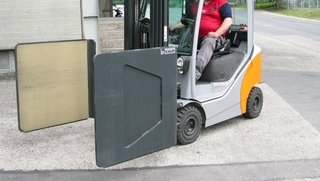

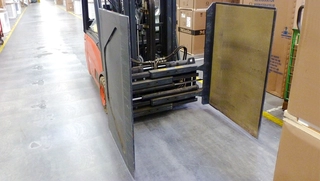

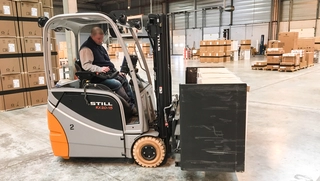

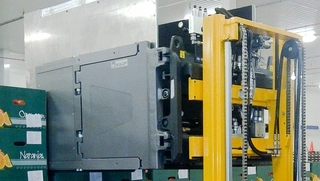

Product pictures and videos

Qualities:

  • Low lost load - very good residual capacities
  • Very good visibility conditions
  • Very slender clamp arms
  • Independent sideshift serially
  • Load backrest optionally



  • Add-on price for 100mm armlength / -height on request,
  • Option: with automatic pressure switching (sensor technology) or attachment available with Smart Load Control (SLC), an autonomous system for controlling the clamp force (models 2T after design adaptation).
  • For contact pad coatings see accessories in the pricelist.
  • Also available without sideshift, model T403G/GL
  • Load Backrest see model T179.
Square icon with a white arrow pointing in two directions and the letter "S"
Attachment has separate sideshift as standard. The maximum allowable sideshift stroke (e.g. ± 100 mm) is always available independent of fork or arm position (with clamps or fork positioners).
Blue icon with the white outline of a drop with two arrows and the number 2 in the middle
Attachment is operated hydraulically, i.e. supplied with oil from the forklift truck’s hydraulic system. Truck requires two additional hydraulic functions.
Icon with fork clamp from above and a blue square with the inscription "SLC"

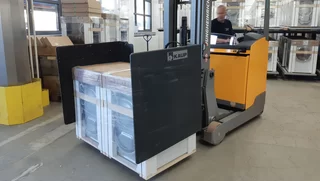

Attachment is available with Smart Load Control (SLC), an autonomous system for controlling the clamp force. The required pressures are always adjusted autonomously depending on the load.
Icon with a blue load backrest on a white background and the inscription T479 underneath it
Attachment can be fitted with load backrest model T479. The load backrest model T479.1 is suitable for fork positioners T160B and T466B up to 4.8T.
Icon with view of an attachment from above with a pressure plate between the brackets
Attachment can be fitted with different types of contact pad surfaces specifically suited to the application.
Icon with the outline of a forklift clamp, two arrows, the inscription "auto" and a measuring device
Attachment is available with automatic pressure adjustment.
Square icon with blue bracket fork, two arrows and a round warning sign above it
Attachment is designed with toe-in on the tips which should be taken into account when choosing the opening range.
