Block Clamp T412HP
with independent sideshift –
Datasheet as pdf Find a contact person Call technical data
Specification:
KAUP Block Clamps T412HP are usually used to handle blocks with the common dimensions of 400 x 200 x 200 mm. Therefore the clamping arms are each fitted with three mechanical equilibration plates (400 x 200 mm). Typically they are manufactured from bulb plate. Depending on the particular application, polyurethane coated contact surfaces are also available.

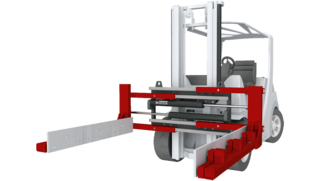

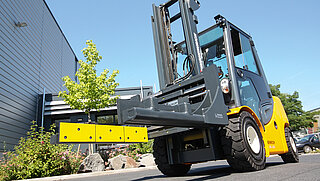

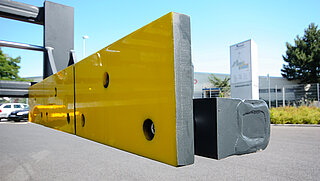

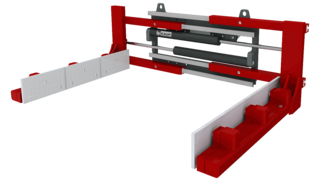

Product pictures and videos
Qualities:
- Hydro-mechanical compensation
- Low lost load centre - excellent residual capacity
- Very good visibility conditions
- Independent sideshift serially
- Load Backrest optionally
- 1) VSS = Valveblock sideshift dependent on opening range.
- Also available without sideshift, model T402HP
- Load Backrest see model T179.
