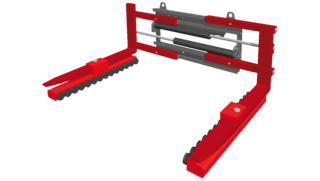

Block & Brick Clamp T412UH

with independent sideshift - with slip-on underslung arms - to handle building material - 2 hydraulic functions

Datasheet as pdf Find a contact person Call technical data

Specification:

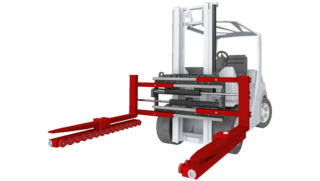

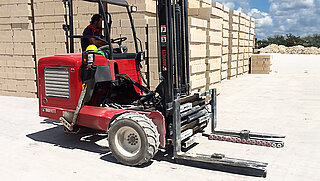

With the KAUP Block & Brick Clamp T412UH it is easy to change between pick up of pallets or grate boxes and handling packets of blocks because this attachment can be used as a Block Clamp and also as a Fork Clamp. Therefore they are typically used in the building industry.

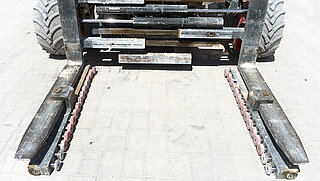

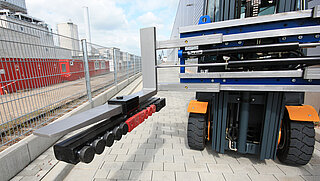

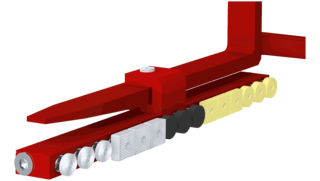

The underslung Block Arms with mechano-hydraulic equalising are suitable for handling small sized blocks. They are mounted oscillating on the carrying part of the existing forks and secured.

Product pictures and videos

Qualities:

  • Low lost load centre - excellent residual capacity
  • Very good visibility conditions
  • Low entry measurements required
  • Simple assembly
  • Independent sideshift serially
  • Different kinds of equalising buffers on offer
  • Load Backrest optionally



  • HG = Rubber coating Ø 75mm, HV = Polyurethane coating Ø 75mm, HV-Q = Square Polyurethane buffers 75 x 75mm, HS = steel disc Ø 60mm, HS-Q = Square steel buffers 80 x 80mm
  • Length G depends on the number of pistons ( ): available arm length 937 (11), 1.019 (12), 1.101 (13), 1.183 (14), 1.265 (15)
  • Also available without sideshift, model T402UH
  • Available with cylinder- and sideshift protection upon request
  • Load Backrest see model T179.
Square icon with a white arrow pointing in two directions and the letter "S"
Attachment has separate sideshift as standard. The maximum allowable sideshift stroke (e.g. ± 100 mm) is always available independent of fork or arm position (with clamps or fork positioners).
Blue icon with the white outline of a drop with two arrows and the number 2 in the middle
Attachment is operated hydraulically, i.e. supplied with oil from the forklift truck’s hydraulic system. Truck requires two additional hydraulic functions.
Icon with a blue load backrest on a white background and the inscription T479 underneath it
Attachment can be fitted with load backrest model T479. The load backrest model T479.1 is suitable for fork positioners T160B and T466B up to 4.8T.
Square icon with the blue outline of a coat of arms and the letters "HD" in the centre
Attachment is available with cylinder and sideshifter protection.
Square icon with blue bracket fork, two arrows and a round warning sign above it
Attachment is designed with toe-in on the tips which should be taken into account when choosing the opening range.
