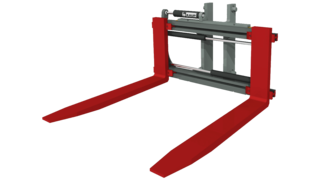

Fork Positioner, integrated T466 BIZ

with independent sideshift - 2 hydraulic functions

Datasheet as pdf Find a contact person Call technical data

Specification:

The KAUP integrated Fork Positioner T466BIZ (A) has been specially designed with optimised visibility and residual capacity. Compared to hook-on Fork Positioners in the T466 range with even better, higher residual capacities this attachment is manufactured from well proven components and is suitable for moderately heavy duty tasks. The qualities of the range of T466BIZ (A) Fork Positioners are particularly effective when different sizes of loads are regularly transported or different kinds of transportation are used - for example in logistics.

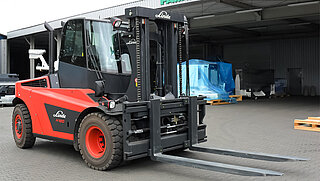

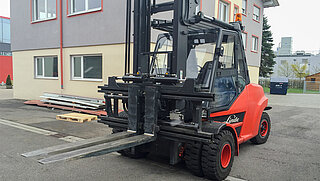

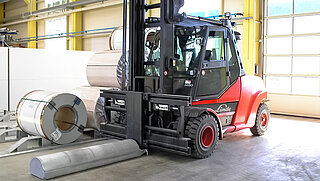

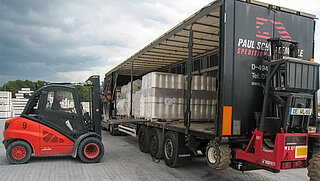

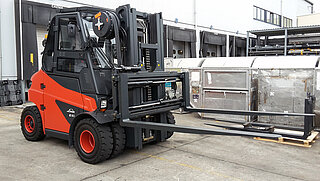

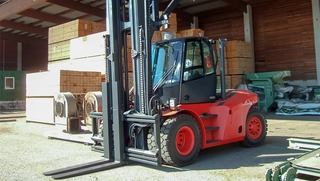

Product pictures and videos

Qualities:

  • For moderately heavy operation - complete program with capacities of up to 10 tons
  • Very good residual capacity
  • Excellent visibility
  • Supplied with welded forks
  • Supplied optionally with screw on forks for wear intensive operation (A-version)
  • Independent sideshift serially



  • 1) 4,8T with capacity (kg/mm) 2.700/1.200 available upon request.
  • CofG and weight measurements do not take the cheek plates into account.
  • Fork carriage drawings, roller studs and chain anchors to be supplied by customer if necessary.
  • Not suitable for clamping between the forks.
  • Load backrest see model T479 and T479.1
  • Larger models and different widths available upon request.
  • with screw-on forks available upon request: BIZA-Version
Square icon with a white arrow pointing in two directions and the letter "S"
Attachment has separate sideshift as standard. The maximum allowable sideshift stroke (e.g. ± 100 mm) is always available independent of fork or arm position (with clamps or fork positioners).
Blue icon with the white outline of a drop with two arrows and the number 2 in the middle
Attachment is operated hydraulically, i.e. supplied with oil from the forklift truck’s hydraulic system. Truck requires two additional hydraulic functions.
Icon with inscription T180 and blue image of a forklift fork on white background
Attachment supplied serially without forks. All forks in accordance with ISO 2330 can be used. Matching forks model T180 are available.
Icon with blue load backrest on white background and the inscription T479/T479.1 below it
Attachment can be fitted with load backrest model T479. The load backrest model T479.1 is suitable for fork positioners T160B and T466B up to 4.8T.
Square icon with a blue hexagon on a white background and the inscription "Ex" in the middle
Attachment is available for operation in explosion hazardous areas.
Icon with forks from above with several arrows pointing inwards and a stop sign above it
Attachment is specially designed for the function fork positioning and is not suitable for clamping between the forks.
