Fork Positioner T160Z

with valveblock sideshift dependent on the opening range - 2 hydraulic functions

Datasheet as pdf Find a contact person Call technical data

Specification:

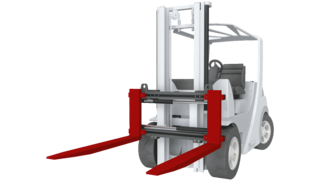

The KAUP hook-on Fork Positioner T160Z (A) is an economical Fork Positioner with welded on or screwed on forks offering an excellent view to the fork tips and load. Therefore the achievable residual capacities are very good.The qualities of the range of T160Z (A) Fork Positioners are particularly effective when different sizes of loads are regularly transported or different kinds of transportation are used - for example in logistics.

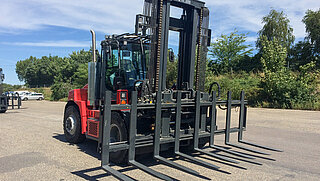

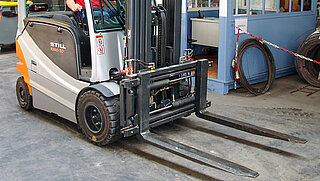

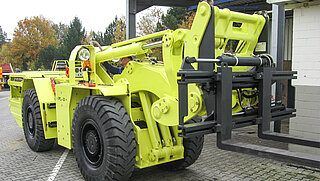

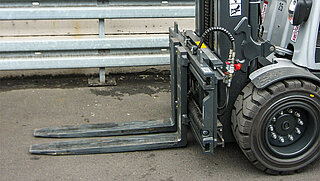

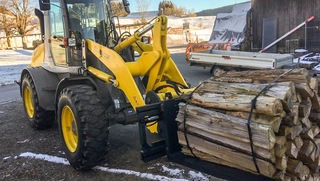

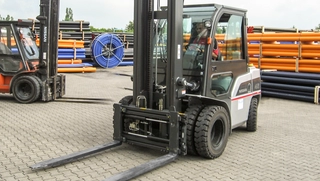

Product pictures and videos

Qualities:

  • For moderately heavy operation
  • Excellent residual capacity
  • High stability with optimal tare weight
  • Very good visibility conditions
  • Valve block sideshift serially
  • Supplied with welded forks
  • Supplied optionally with screw on forks for wear intensive operation (A-version)
  • Forks with a length of more than 2400mm available upon request
  • Construction width of the attachment and opening range is not dependent on the width of the forklift truck carriage



  • 1) 4,8T with capacity (kg/mm) 2.700/1.200 available upon request.
  • Not suitable for clamping between the forks.
  • Available without sideshift.
  • Load backrest see model T479 and T479.1
  • with screw-on forks available upon request: ZA-Version
  • Optional in explosion proof version
Blue-white icon with the letter "V" in the centre and two arrows pointing left and right
Attachment has valveblock sideshift serially (integrated sideshift). Its design means that sideshift stroke is not available when the forks or arms are completely opened and/or completely closed.
Blue icon with the white outline of a drop with two arrows and the number 2 in the middle
Attachment is operated hydraulically, i.e. supplied with oil from the forklift truck’s hydraulic system. Truck requires two additional hydraulic functions.
Icon with blue load backrest on white background and the inscription T479/T479.1 below it
Attachment can be fitted with load backrest model T479. The load backrest model T479.1 is suitable for fork positioners T160B and T466B up to 4.8T.
Square icon with a blue hexagon on a white background and the inscription "Ex" in the middle
Attachment is available for operation in explosion hazardous areas.
Icon with forks from above with several arrows pointing inwards and a stop sign above it
Attachment is specially designed for the function fork positioning and is not suitable for clamping between the forks.

Product details

Technical data

Your KAUP consultant
Get in contact with us!
+49 6021 865 0
zentrale@kaup.de

Downloads

Downloads in other languages

Calculate residual capacity

Do you want to equip your forklift truck with an attachment from KAUP? Then you can calculate the residual capacity of your forklift roughly and without obligation here.
