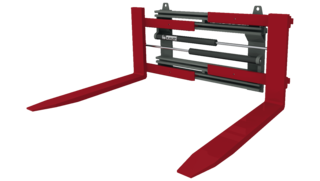

Fork Positioner T411 BZ

with valveblock sideshift dependent on the opening range - 2 hydraulic functions

Datasheet as pdf Find a contact person Call technical data

Specification:

The KAUP hook-on Fork Positioner T411BZ is a robust attachment with large opening ranges for exceptionally heavy duty operation - ideal for uneven surfaces. The construction of this Fork Positioner predestines it for handling long loads and steel girders and especially for heavy duty operation in, for example, concrete plants.

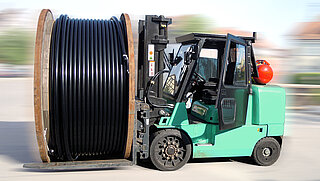

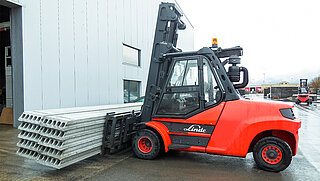

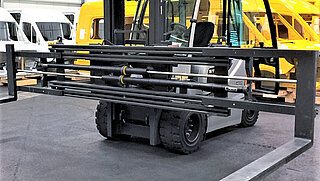

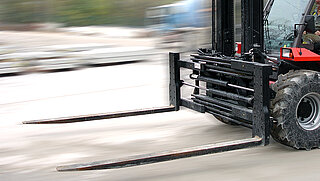

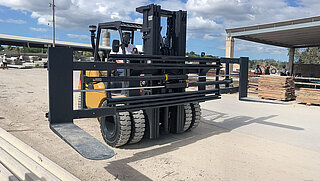

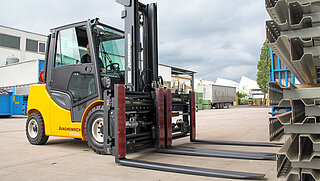

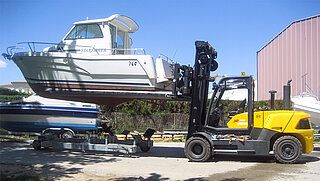

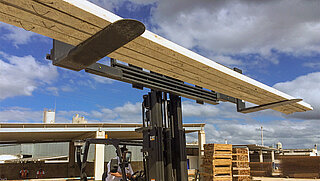

Product pictures and videos

Qualities:

  • Very large opening ranges
  • Good residual capacity
  • Valve block sideshift - dependent on opening range - serially
  • Opening range significantly larger than the construction width
  • Independent sideshift optionally
  • Screw-on forks optional



  • 1) Transport of europallets lengthwise not possible.
  • 2) Alternatively available with third fork in the centre. (add-on-price)
  • Not suitable for clamping between the forks.
  • With screw-on forks available upon request T411BZA
  • Load Backrest see model T179.

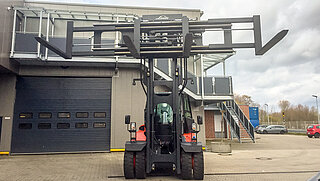

  • Also available without sideshift, model T401BZ
Blue-white icon with the letter "V" in the centre and two arrows pointing left and right
Attachment has valveblock sideshift serially (integrated sideshift). Its design means that sideshift stroke is not available when the forks or arms are completely opened and/or completely closed.
Blue icon with the white outline of a drop with two arrows and the number 2 in the middle
Attachment is operated hydraulically, i.e. supplied with oil from the forklift truck’s hydraulic system. Truck requires two additional hydraulic functions.
Icon with a blue load backrest on a white background and the inscription T479 underneath it
Attachment can be fitted with load backrest model T479. The load backrest model T479.1 is suitable for fork positioners T160B and T466B up to 4.8T.
Square icon with a blue hexagon on a white background and the inscription "Ex" in the middle
Attachment is available for operation in explosion hazardous areas.
Icon with forks from above with several arrows pointing inwards and a stop sign above it
Attachment is specially designed for the function fork positioning and is not suitable for clamping between the forks.
Square icon with the blue outline of a coat of arms and the letters "HD" in the centre
Attachment is available with cylinder and sideshifter protection.
Square icon with blue bracket fork, two arrows and a round warning sign above it
Attachment is designed with toe-in on the tips which should be taken into account when choosing the opening range.
