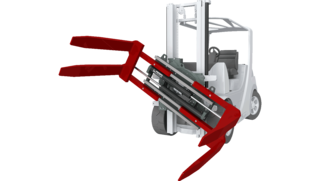

Pallet Turnover Clamp T451W

Select model and request
Product details Call technical data Contact Downloads & Tools

Specification:

The KAUP Pallet Turnover Clamp T451W is an attachment designed with high visibility and suitable for all kinds of applications. It can be used to turn palletised and non-palletised goods or to exchange pallets e.g. from production pallets to transport pallets. It is also suitable for empting grid boxes or other transport containers.

Product pictures and videos

Product details

Qualities:

  • Good visibility conditions
  • Solid construction
  • Rotation 360° endless
  • Two double forks serially for secure handling
  • Optionally available with sideshift available
  • Optionally with lateral supporting plate



  • available with additional pair of forks - model T451W/180
  • Also available with sideshift, model T491W on request
Square icon with a circular arrow and the centrally placed inscription "360 degrees"
Attachment rotates hydraulically by 360° endless in both directions.
Blue icon with the white outline of a drop with two arrows and the number 2 in the middle
Attachment is operated hydraulically, i.e. supplied with oil from the forklift truck’s hydraulic system. Truck requires two additional hydraulic functions.
Square blue icon with white crossed-out arrow pointing in two directions
Attachment is serially designed without sideshift. It can be fitted with separate or valveblock sidesift upon request.
Square icon with a blue hexagon on a white background and the inscription "Ex" in the middle
Attachment is available for operation in explosion hazardous areas.
Square icon with blue bracket fork, two arrows and a round warning sign above it
Attachment is designed with toe-in on the tips which should be taken into account when choosing the opening range.
Square icon with the blue outline of a coat of arms and the letters "HD" in the centre
Attachment is available with cylinder and sideshifter protection.

Technical data

Rotation 360° continuous - with two movable fork pairs - 2 hydraulic functions
