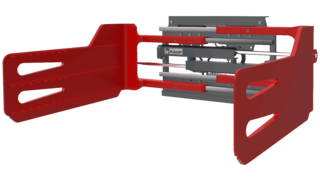

Recycling Bale Clamp T413RC (VBS)

with valveblock sideshift dependent on opening range with cylinder- and sideshift protection - 2 hydraulic functions

Datasheet as pdf Find a contact person

Technical data

Specification:

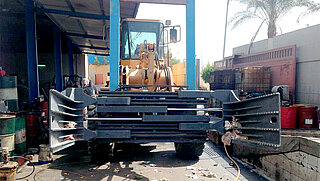

KAUP Recycling Clamps are suitable for the transportation of non- palletised reusable materials in the recycling industry. This special range of bale clamps has several specific features, e.g. clamping arms 2 metres long for clamping the load, strengthened arm connections on the clamp profiles to allow clamping with the tips of the arms.

Qualities:

  • Excellent price-performance ratio
  • Solid strengthened design with KAUP clamp profiles from T-profiles and C-profiles
  • Strengthened arm construction with toothed bars
  • Solid wear and tear bars under clamp body and clamp arms optionally
  • Valveblock sideshift serially
  • Combination with KAUP rotary devices possible
  • Customer specified modifications feasible



  • Also available without sideshift, model T403RC/BRC
  • Load Backrest see model T179.
Your KAUP consultant
André Christ

Product details

Attachment has valveblock sideshift serially (integrated sideshift). Its design means that sideshift stroke is not available when the forks or arms are completely opened and/or completely closed.
Attachment is operated hydraulically, i.e. supplied with oil from the forklift truck’s hydraulic system. Truck requires two additional hydraulic functions.
Attachment serially equipped with cylinder and sideshift protection.
Attachment can be fitted with load backrest model T479. The load backrest model T479.1 is suitable for fork positioners T160B and T466B up to 4.8T.
Attachment is designed with toe-in on the tips which should be taken into account when choosing the opening range.
