Rotating Roll Clamp T458 S

Short arm fixed - 2 hydraulic functions

Datasheet as pdf Find a contact person Call technical data

Specification:

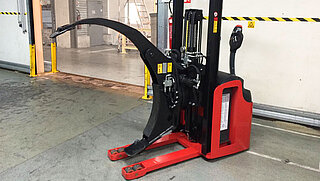

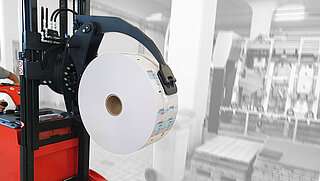

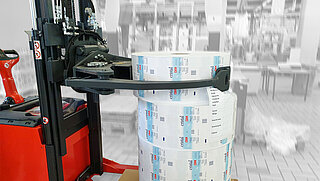

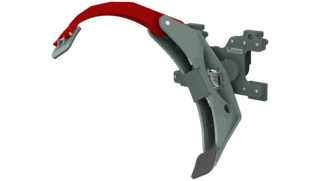

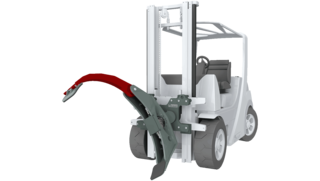

The view-optimised designed KAUP Rotating Roll Clamp T458S is well suited especially for the careful admission and the transport of narrow rolls from a width of 150 mm.

Product pictures and videos

Qualities:

  • Very good visibility conditions
  • Favorable lost load and weight
  • Respectable, slender arm construction
  • Different contact pad coatings available
  • Rotation 360° endlessly



  • Capacity related to max. roll diameter.
  • For taking up horizontal rolls, 5-degree mast forward tilt is required.
  • Pressure plate coverings see under accessories.
Square icon with a circular arrow and the centrally placed inscription "360 degrees"
Attachment rotates hydraulically by 360° endless in both directions.
Blue icon with the white outline of a drop with two arrows and the number 2 in the middle
Attachment is operated hydraulically, i.e. supplied with oil from the forklift truck’s hydraulic system. Truck requires two additional hydraulic functions.
Square blue icon with white crossed-out arrow pointing in two directions
Attachment is serially designed without sideshift. It can be fitted with separate or valveblock sidesift upon request.
Icon with view of an attachment from above with a pressure plate between the brackets
Attachment can be fitted with different types of contact pad surfaces specifically suited to the application.
