Rotator 360° endless, foundry version T391G

with independent sideshift - 2 hydraulic functions

Datasheet as pdf Find a contact person

Technical data

Specification:

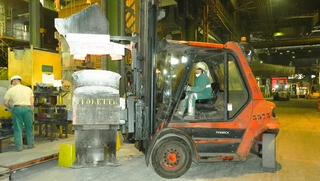

The KAUP Rotator 360° endless T391 is also available in a foundry implementation. This attachment is adapted to the demands of this operational area with a closed fork carriage plate and a closed base plate as well as heat-resistant covered hydraulic tubes. Otherwise this rotator resembles the T391.

Qualities:

  • Foundry implementation
  • Good residual capacity
  • Rotation 360° endlessly
  • Robust construction with gear drive
  • Sideshift seriallyOriginal forks usable
  • Lateral supporting fork and load stabilizers optionally



  • Rotators with higher rotating speeds available upon request
  • Other fork carriage widths available upon request.
  • Lateral supporting fork 800 mm (add-on-price)
  • Rotators up to 40 T upon request.
  • Matching forks for KAUP-Rotators on request.
  • When forks are used in combination with a Rotator extremely high strain is applied to the lower fork angle when rotating a load which in turn strains the lower brackets.
  • For this type of operation KAUP recommends forks with strengthened lower brackets. Strengthened lower brackets can be ordered for all ISO forks model T180.
Your KAUP consultant
André Christ

Product details

Attachment rotates hydraulically by 360° endless in both directions.
Attachment is serially manufactured in foundry version. It is designed for operation in applications with extremely high temperatures. Further Information are displayed in a glossary in the info-center.
Attachment has separate sideshift serially. The maximum allowable sideshift stroke (e.g. ± 100 mm) is always available independent of fork or arm position (with clamps or fork positioners).
Attachment is operated hydraulically, i.e. supplied with oil from the forklift truck’s hydraulic system. Truck requires two additional hydraulic functions.
Attachment supplied serially without forks. All forks in accordance with ISO 2330 can be used. Matching forks model T180 are available.

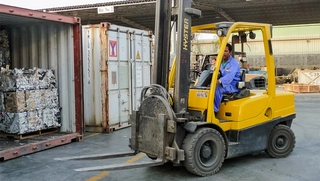

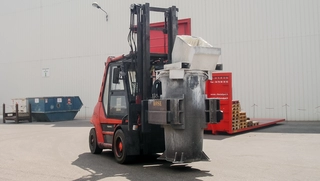

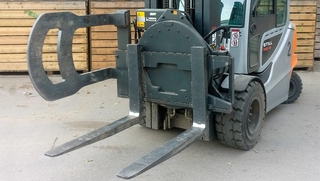

Product pictures and videos
