Appliance- / Carton Clamp T414-2L

with independent sideshift - rubber coated arms - two contact pads per swivelling arm - 2 hydraulic functions

Datasheet as pdf Find a contact person Call technical data

Specification:

With the KAUP Appliance-/Carton Clamp T414-2L wide loads with different load masses can be taken up. Because with two contact pads per clamp arm this attachment is able to compensate existing tolerance.

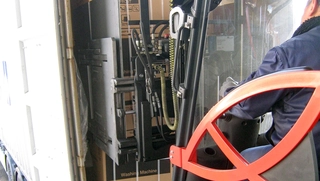

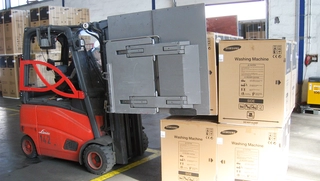

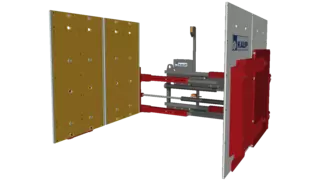

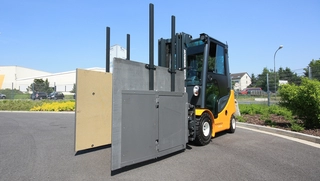

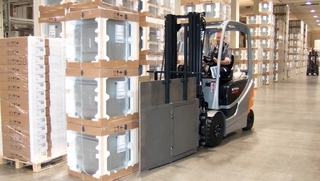

Product pictures and videos

Qualities:

Low lost load - very good residual capacities
Good visibility conditions
Independent sideshift serially
Load backrest optionally

Add-on price for 100mm armlength / -height on request,
Option: with automatic pressure switching (sensor technology) or attachment available with Smart Load Control (SLC), an autonomous system for controlling the clamp force (models 2T after design adaptation).
For contact pad coatings see accessories in the pricelist.

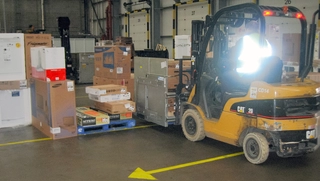

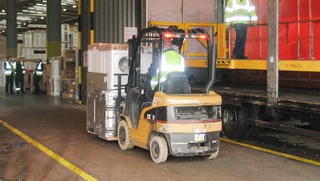

Also available without sideshift, model T404-2L
Load Backrest see model T179.

Attachment has separate sideshift as standard. The maximum allowable sideshift stroke (e.g. ± 100 mm) is always available independent of fork or arm position (with clamps or fork positioners).

Attachment is operated hydraulically, i.e. supplied with oil from the forklift truck’s hydraulic system. Truck requires two additional hydraulic functions.

Attachment is available with Smart Load Control (SLC), an autonomous system for controlling the clamp force. The required pressures are always adjusted autonomously depending on the load.

Attachment can be fitted with load backrest model T479. The load backrest model T479.1 is suitable for fork positioners T160B and T466B up to 4.8T.

Attachment can be fitted with different types of contact pad surfaces specifically suited to the application.

Attachment is available with automatic pressure adjustment.

Attachment is designed with toe-in on the tips which should be taken into account when choosing the opening range.
