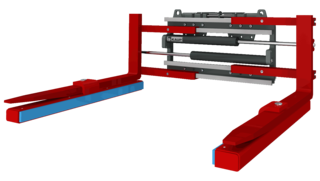

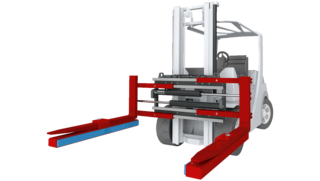

Block Clamp T412UVP

with independent sideshift - with slip-on underslung arms - to handle building material - 2 hydraulic functions

Datasheet as pdf Find a contact person Call technical data

Specification:

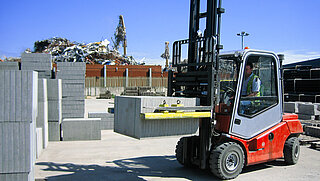

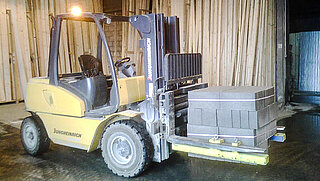

KAUP Block Clamps T412UVP are the most suitable attachment when handling is frequently changed between pick up of pallets or grate boxes and handling packets of blocks. This attachment can be used as a Block Clamp and also as a Fork Clamp. Therefore they are typically used in the building industry.

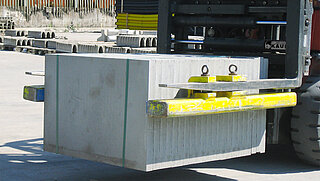

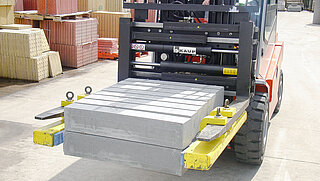

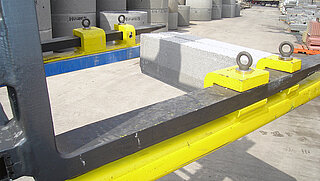

In order to handle packets of blocks the underslung Block Arms are simply slipped on the carrying part of the existing forks and secured.

Product pictures and videos

Qualities:

  • Low lost load centre - excellent residual capacity
  • Very good visibility conditions
  • Low entry measurements required
  • Simple assembly
  • Independent sideshift serially
  • Load Backrest optionally



  • 1) Distance between forks without slip-on arms.
  • Also available without sideshift, model T402UVP
  • Variations in arm dimensions upon request.
  • Available with cylinder- and sideshift protection upon request
  • Load Backrest see model T179.
Square icon with a white arrow pointing in two directions and the letter "S"
Attachment has separate sideshift as standard. The maximum allowable sideshift stroke (e.g. ± 100 mm) is always available independent of fork or arm position (with clamps or fork positioners).
Blue icon with the white outline of a drop with two arrows and the number 2 in the middle
Attachment is operated hydraulically, i.e. supplied with oil from the forklift truck’s hydraulic system. Truck requires two additional hydraulic functions.
Icon with a blue load backrest on a white background and the inscription T479 underneath it
Attachment can be fitted with load backrest model T479. The load backrest model T479.1 is suitable for fork positioners T160B and T466B up to 4.8T.
Square icon with the blue outline of a coat of arms and the letters "HD" in the centre
Attachment is available with cylinder and sideshifter protection.
Square icon with blue bracket fork, two arrows and a round warning sign above it
Attachment is designed with toe-in on the tips which should be taken into account when choosing the opening range.
