Block Clamp T412V

with independent sideshift – – 2 hydraulic functions

Datasheet as pdf Find a contact person Call technical data

Specification:

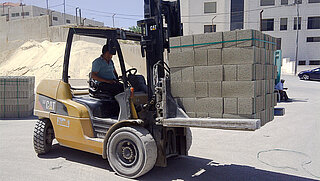

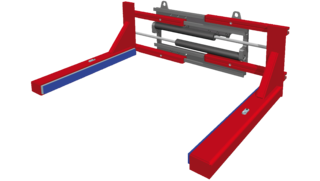

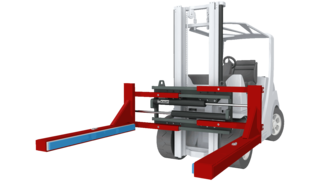

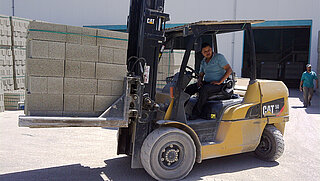

KAUP Block Clamps T412V are best suited to pick up packets of upright format blocks with plane surfaces such as hollow, lime sand and concrete blocks as well as curb stones with high dimensional stability. The arms have a central swinging support to uniformly distribute the pressure and have flexible Vulcollan bars to compensate variations in dimensions of the load.

Product pictures and videos

Qualities:

  • Low lost load centre - excellent residual capacity
  • Very good visibility conditions
  • Independent sideshift serially
  • Load Backrest optionally



  • Also available without sideshift, model T402V
  • Variations in arm dimensions upon request.
  • Load Backrest see model T179.
Square icon with a white arrow pointing in two directions and the letter "S"
Attachment has separate sideshift as standard. The maximum allowable sideshift stroke (e.g. ± 100 mm) is always available independent of fork or arm position (with clamps or fork positioners).
Blue icon with the white outline of a drop with two arrows and the number 2 in the middle
Attachment is operated hydraulically, i.e. supplied with oil from the forklift truck’s hydraulic system. Truck requires two additional hydraulic functions.
Icon with a blue load backrest on a white background and the inscription T479 underneath it
Attachment can be fitted with load backrest model T479. The load backrest model T479.1 is suitable for fork positioners T160B and T466B up to 4.8T.
Square icon with the blue outline of a coat of arms and the letters "HD" in the centre
Attachment is available with cylinder and sideshifter protection.
Square icon with blue bracket fork, two arrows and a round warning sign above it
Attachment is designed with toe-in on the tips which should be taken into account when choosing the opening range.

Product details

Technical data

Your KAUP consultant
Get in contact with us!
+49 6021 865 0
zentrale@kaup.de

Downloads

Downloads in other languages

Calculate residual capacity

Do you want to equip your forklift truck with an attachment from KAUP? Then you can calculate the residual capacity of your forklift roughly and without obligation here.
Calculate load capacity

Create online offer

With our eQuotation-Tool you can independently create a binding offer for an attachment from KAUP.

Please login to use the eQuotation-Tool.

Request e-quotation
Please log in

We are here for you.

We offer you first-class services for our quality attachments: whether spare parts, professional technicians for repair and maintenance on site, training for regular care and ongoing maintenance of KAUP products.

KAUP Services
