Fork Clamp T411

with independent sideshift - 2 hydraulic functions - also availabe with round forks

Datasheet as pdf Find a contact person

Technical data

Specification:

The variously applicable Fork Clamp T411 is the base for all clamps of KAUP. Therefore, this attachment particularly suitable for hard use can be adapted very well to the individual demands. No matter, whether different hook-on fork cross sections for divergent charges, changed hook-on fork forms or the combination with other attachments: KAUP makes it possible.

Qualities:

  • For hard onsets suitable
  • Good visibility conditions
  • Good residual capacity
  • Independent sideshift serially
  • Screw-on forks and round prongs optionally
  • Load backrest optionally
  • Optionally the most different puttable on clamp arms

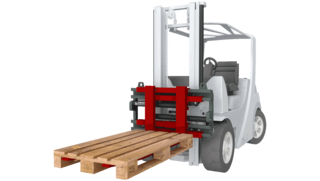

  • The Fork Clamp can be used for the transportation of palletised goods as well as for clamping purposes.
  • Slip-on arms in different versions easily turn the Fork Clamp into a special clamp.
  • 1) Transport of europallets lengthwise not possible.
  • Also available without sideshift, model T401
  • Fork Positioner with cylinder- and sideshift protection upon request.
  • Load Backrest see model T179.
  • With screw-on forks available upon request T411A
Your KAUP consultant
André Christ

Product details

Attachment has separate sideshift serially. The maximum allowable sideshift stroke (e.g. ± 100 mm) is always available independent of fork or arm position (with clamps or fork positioners).
Attachment is operated hydraulically, i.e. supplied with oil from the forklift truck’s hydraulic system. Truck requires two additional hydraulic functions.
Attachment can be fitted with load backrest model T479. The load backrest model T479.1 is suitable for fork positioners T160B and T466B up to 4.8T.
Attachment is available with cylinder and sideshifter protection.
Attachment is available for operation in explosion hazardous areas.
Attachment is designed with toe-in on the tips which should be taken into account when choosing the opening range.

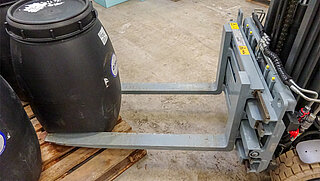

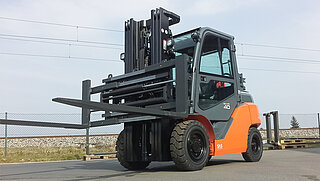

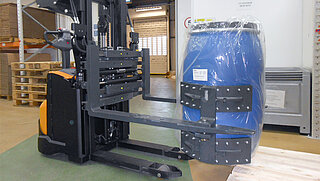

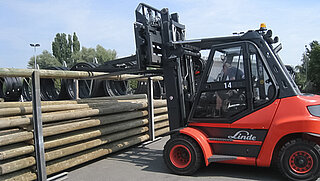

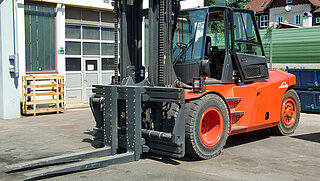

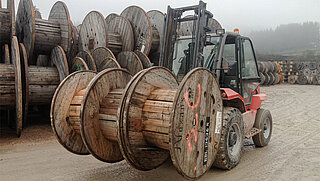

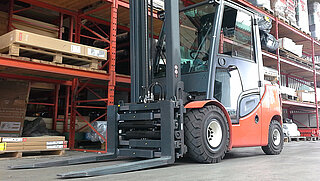

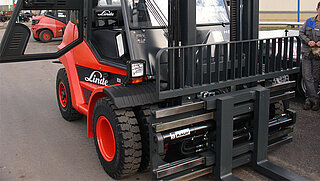

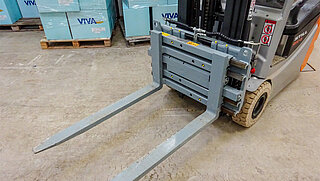

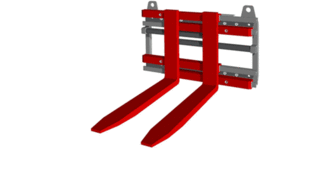

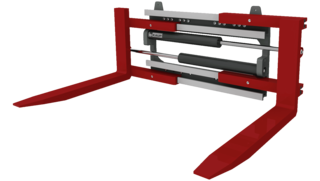

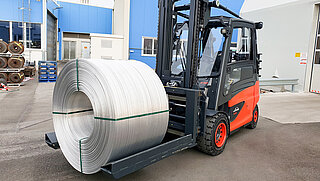

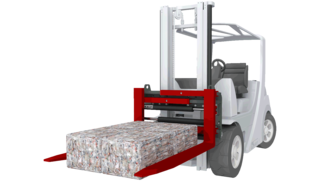

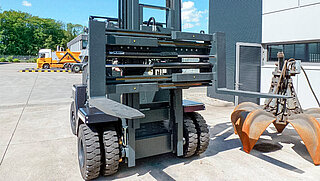

Product pictures and videos
