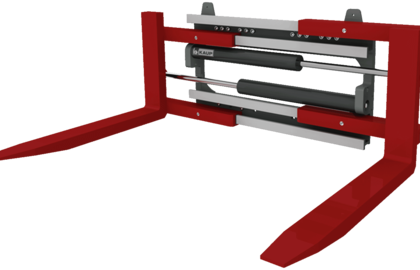

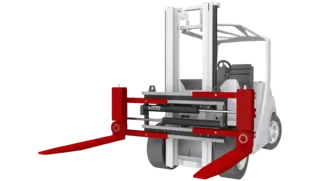

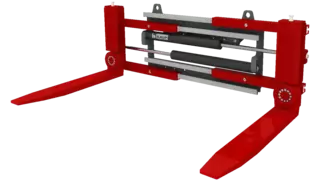

Fork Clamp with Turnable Forks T411D

with independent sideshift - Fork length max. 1.300 mm - 2 hydraulic functions

Technical data

Specification:

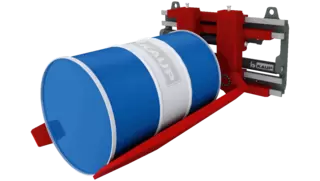

Flexibility is the motto of the KAUP Fork Clamp with Turnable Forks T411D. This clamp is a very universally applicable attachment, because the carrying part of the hook-on forks is turnable by ± 90 °. Therefore, the rotary hook-on fork clamp can be used for hook-on fork works as well as the clamps by bale, boxes and cardboards. If the carrying part are turned only around by 45 °, besides, the transport of barrels or other cylindrical bodies is easily possible.

Qualities:

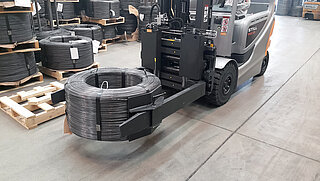

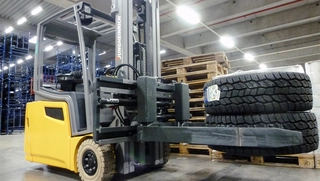

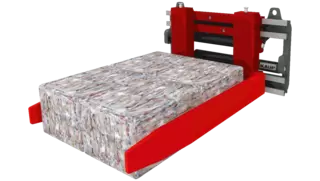

Suitably to the Handling of the most different load forms - palettised product, grid boxing, underrun loads (basic position), barrels and cylindrical bodies (45 ° positions), bales, clamps, cardboards etc. (90 ° positions)
Very good visibility conditions
Independent sideshift serially
Load backrest optionally
Puttable on clamp arms optionally

Hydraulically turnable forks available upon request.
Slip-on arms for the forks model T103A and T103AG

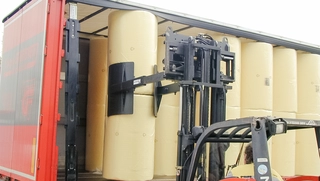

Also available without sideshift, model T401D
Load Backrest see model T179.
Fork length max. 1.300 mm

Your KAUP consultant

André Christ

+49 6021 865 597

andre.christ@kaup.de

Product details

Attachment has separate sideshift serially. The maximum allowable sideshift stroke (e.g. ± 100 mm) is always available independent of fork or arm position (with clamps or fork positioners).

Attachment is operated hydraulically, i.e. supplied with oil from the forklift truck’s hydraulic system. Truck requires two additional hydraulic functions.

Attachment can be fitted with load backrest model T479. The load backrest model T479.1 is suitable for fork positioners T160B and T466B up to 4.8T.

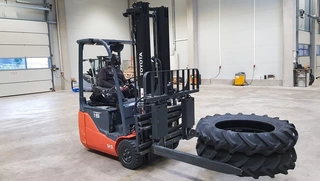

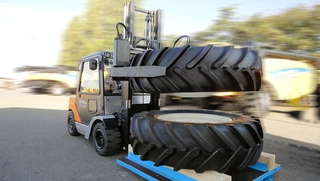

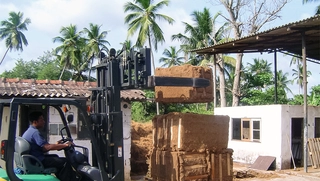

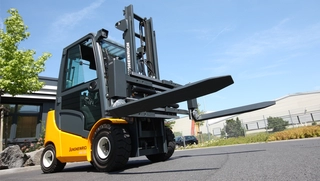

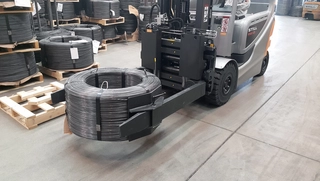

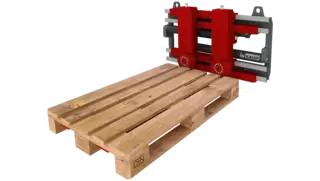

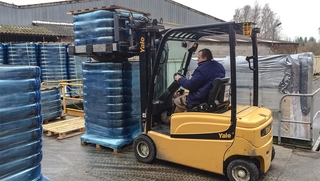

Product pictures and videos
