Rotating Roll Clamp T458BC-2

360° rotation continuous - short arm fixed - 2 hydraulic functions

Datasheet as pdf Find a contact person Call technical data


With the view-optimised designed KAUP Rotating Roll Clamp T458BC-2 all kinds of roles can be taken up carefully and be advanced. The contact pad of this attachment is divided and allows in such a way that at the same time two rolls - also with different diameters - can be transported stacked. This makes this attachment everywhere inalienable where the handling of paper rolls, concrete tubes and similar one is essential.

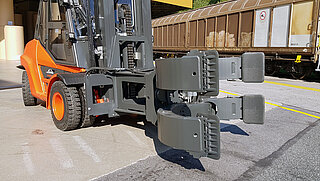

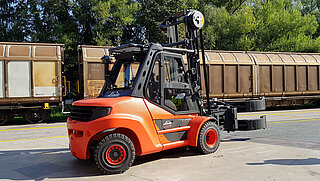

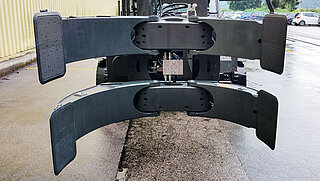

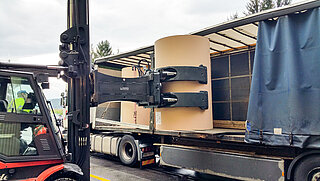

Product pictures and videos


  • Very good visibility conditions
  • Favorable lost load and weight
  • Solid, slender arm construction
  • Different contact pad coatings available
  • Rotation 360° endlessly
  • Limitation on rotation 180° optionally
  • Service friendly
  • Optional: contact pad coatings (standard polyurethane coating Poly-1)
  • Capacity related to max. roll diameter.
  • For taking up horizontal rolls, 5-degree mast forward tilt is required.
  • Optional: restricted to 180° rotation, Tissue version, short arm with continuous contact pads.
  • Pressure plate coverings see under accessories.
  • Attachment with sideshift Model T498BC-2 (add-on price).
Square icon with a circular arrow and the centrally placed inscription "360 degrees"
Attachment rotates hydraulically by 360° endless in both directions.
Blue icon with the white outline of a drop with two arrows and the number 2 in the middle
Attachment is operated hydraulically, i.e. supplied with oil from the forklift truck’s hydraulic system. Truck requires two additional hydraulic functions.
Square blue icon with white crossed-out arrow pointing in two directions
Attachment is serially designed without sideshift. It can be fitted with separate or valveblock sidesift upon request.
Icon with view of an attachment from above with a pressure plate between the brackets
Attachment can be fitted with different types of contact pad surfaces specifically suited to the application.
Blue icon with circular white arrow and the inscription 180 degrees in the centre
Attachment is available restricted to 180° rotation.
