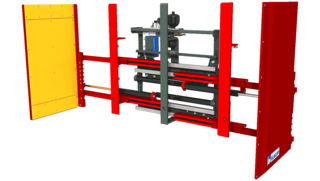

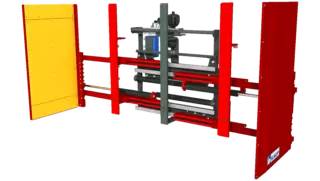

Telescopic Appliance Clamp T413GT

with independent sideshift - rubber coated arms - both arms fix - 2 hydraulic functions

Datasheet as pdf Find a contact person Call technical data

Specification:

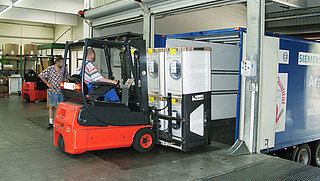

The KAUP Telescopic Appliance Clamp T413GT is used where white and brown product as well as other wide loading property is used. The slender clamp arms predestine this attachment for the truck and container loading.

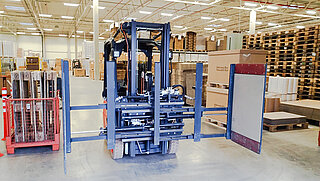

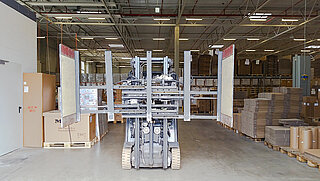

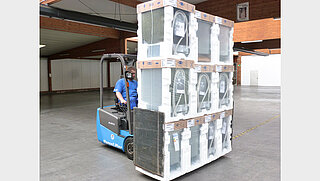

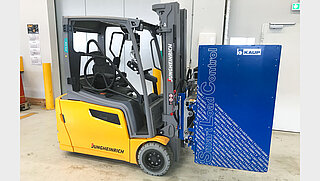

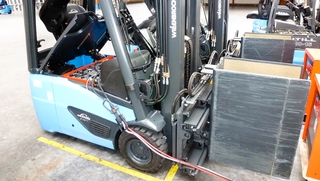

Product pictures and videos

Qualities:

Very good visibility conditions
Extremely big opening ranges with small construction width
Independent sideshift serially
Load backrest optionally

Add-on price for 100mm armlength / -height on request,
Option: with automatic pressure switching (sensor technology) or attachment available with Smart Load Control (SLC), an autonomous system for controlling the clamp force (models 2T after design adaptation).
For contact pad coatings see accessories in the pricelist.

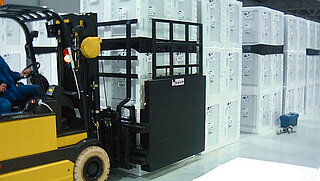

Also available without sideshift, model T403GT
Load Backrest see model T179.

Attachment has separate sideshift as standard. The maximum allowable sideshift stroke (e.g. ± 100 mm) is always available independent of fork or arm position (with clamps or fork positioners).

Attachment is operated hydraulically, i.e. supplied with oil from the forklift truck’s hydraulic system. Truck requires two additional hydraulic functions.

Attachment is available with Smart Load Control (SLC), an autonomous system for controlling the clamp force. The required pressures are always adjusted autonomously depending on the load.

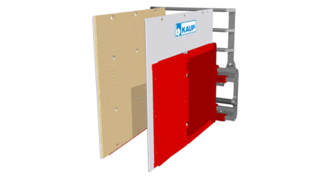

Attachment can be fitted with different types of contact pad surfaces specifically suited to the application.

Attachment is available with automatic pressure adjustment.

Attachment can be fitted with load backrest model T479. The load backrest model T479.1 is suitable for fork positioners T160B and T466B up to 4.8T.

Attachment is designed with toe-in on the tips which should be taken into account when choosing the opening range.
