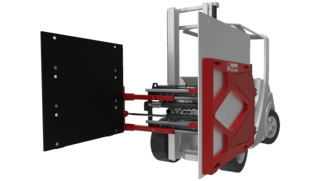

Appliance-/Carton Clamp T414B-1

with separate sideshift - pressure plates with grooved profile rubber (RPG) - both arms oscillating - 2 hydraulic functions

Datasheet as pdf Find a contact person Call technical data

Specification:

KAUP Appliance- and Carton Clamp T414B-1 are used world-wide for palletless transportation of white goods (fridges, washing machines etc.) and brown goods (electronic entertainment centres). For transportation of only one unit or up to 16 units: KAUP always has a suitable Appliance / Carton Clamp!

Product pictures and videos

Qualities:

Low lost load - very good residual capacities
Very good visibility conditions
Independent sideshift serially
Load backrest optionally
Lastabhängige Klammerkraftregelung ‚Smart Load Control‘ optional
Load-dependent clamping force control ‚Smart Load Control‘ optionally

Add-on price for other arm dimensions upon request.
Option: with automatic pressure switching (sensor technology) or attachment available with Smart Load Control (SLC), an autonomous system for controlling the clamp force (models 2T after design adaptation).
Pressure plate coatings - see accessories
Attachment without sideshift model T404B-1.
Load Backrest see model T179.
Device with Smart Load Control (SLC) system for autonomous clamping force control available.
Model without sideshift T404B-1/099H. Model with sideshift T414B-1/099H.

Attachment has separate sideshift as standard. The maximum allowable sideshift stroke (e.g. ± 100 mm) is always available independent of fork or arm position (with clamps or fork positioners).

Attachment is operated hydraulically, i.e. supplied with oil from the forklift truck’s hydraulic system. Truck requires two additional hydraulic functions.

Attachment is available with Smart Load Control (SLC), an autonomous system for controlling the clamp force. The required pressures are always adjusted autonomously depending on the load.

Attachment can be fitted with load backrest model T479. The load backrest model T479.1 is suitable for fork positioners T160B and T466B up to 4.8T.

Attachment can be fitted with different types of contact pad surfaces specifically suited to the application.

Attachment is available with automatic pressure adjustment.

Attachment is designed with toe-in on the tips which should be taken into account when choosing the opening range.
